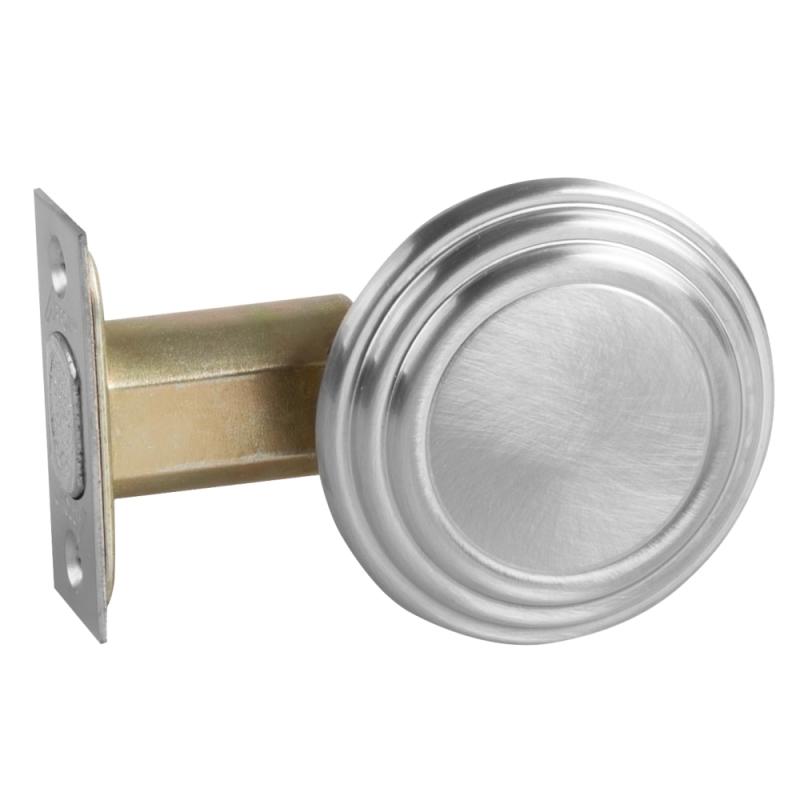

D60 26D Arrow Locks, Cylinders, Cores, Keyblank

The Arrow D series is a Grade 1 extra heavy duty deadlock that suprasses the demands of industrial, institutional and commercial applications.

• Housing–Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Deadbolt–1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Backset–2-3/8" (60.32mm), 2-3/4" (69.85mm).
• Deadbolt fronts–2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
• Doors–1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
• Strikes–Supplied standard with the #346 wood frame strike and BX91D strike reinforcement. The #345 metal frame strike is optional.
• Handing–All functions are reversible.
• Cylinder, Standard–Solid brass, Arrow “A” keyway, 6 pin cylinder. Supplied with two nickel silver keys. Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options–Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best ™ or Falcon™ type cores (except the E41).
