Corbin Russwin - Deadbolts

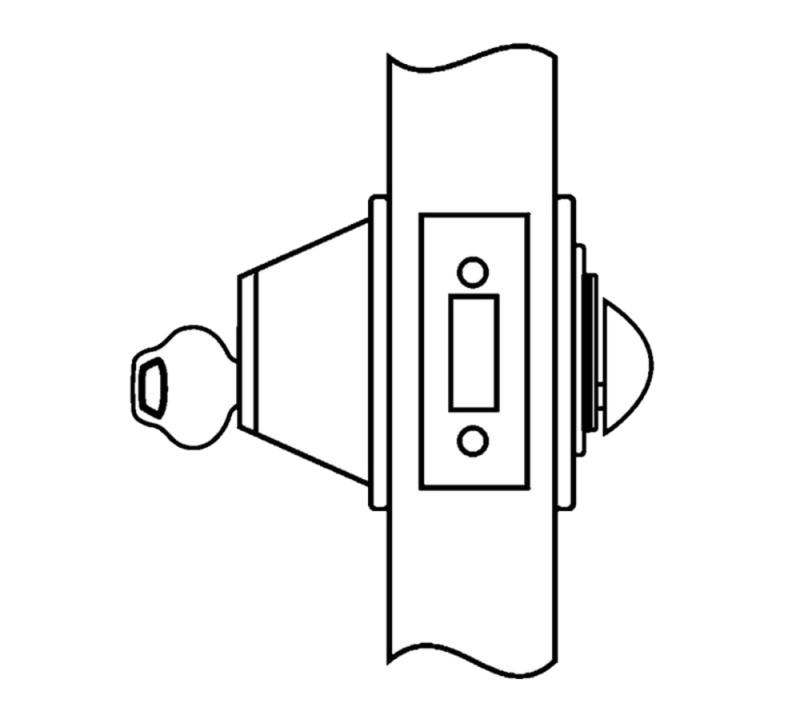

DL3013 626 CL6 Corbin Russwin Locks, Cylinders, Cores, Keyblank
$227.88
Single Cylinder, Large Format Interchangeable Less Core, Satin Chrome
Assembled from stock components. Call for availability.
Spec Options
Product Info
Technical Specs
Resources
Product Details
The DL3000 Series is non handed and available in various finishes.
- Handing: Non-handed, except DL3017, which is handed and field reversible.
- Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
- Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
- Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
- Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
- Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
- Warranty: One-year limited.
Product Specs
BASIC SPECS
ManufacturerCorbin Russwin
SkuDL3013 626 CL6
Unit of MeasureEach
Limited Warranty1 Year
Fire RatedNo
FINISH
Finish626/US26D
Finish DescriptionSatin Chrome
