Corbin Russwin - Deadbolts

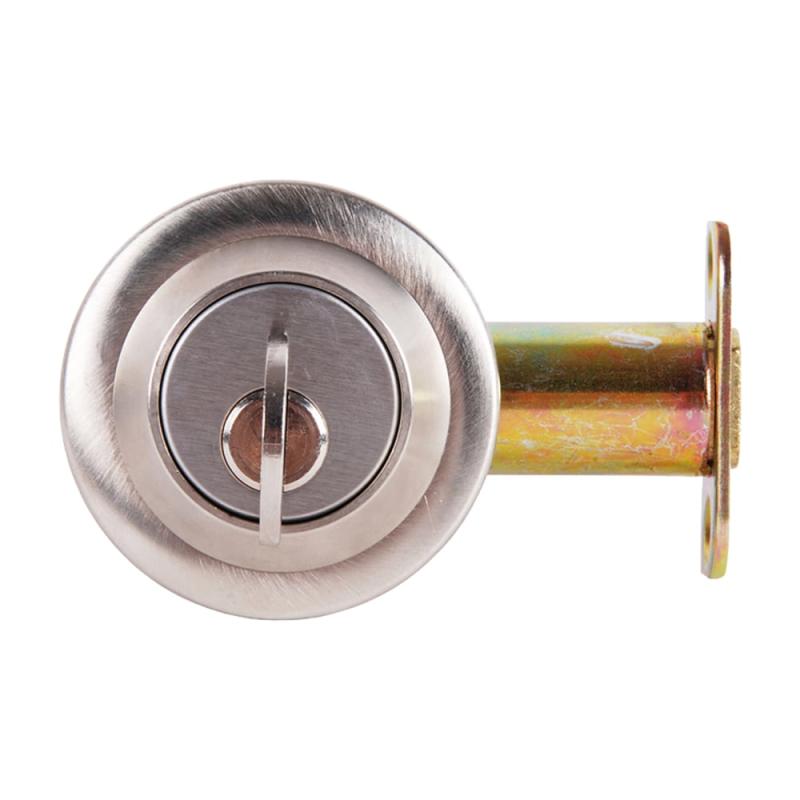

DL3060 626 Corbin Russwin Locks, Cylinders, Cores, Keyblank
$227.88
Thumbturn x Blank, Satin Chrome
In Stock Quantity: 3
Spec Options
Product Info
Technical Specs
Resources
Product Details
The DL3000 Series is non handed and available in various finishes.
- Handing: Non-handed, except DL3017, which is handed and field reversible.
- Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
- Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
- Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
- Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
- Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
- Warranty: One-year limited.
Product Specs
BASIC SPECS
ManufacturerCorbin Russwin
SkuDL3060 626
Unit of MeasureEach
Limited Warranty1 Year
Fire RatedNo
FINISH
Finish626/US26D
Finish DescriptionSatin Chrome
