Corbin Russwin - Deadbolts
DL3213 626 CL6 Corbin Russwin Locks, Cylinders, Cores, Keyblank
$176.04
Single Cylinder, Large Format Interchangeable Less Core, Satin Chrome
In Stock Quantity: 11
Spec Options
Product Info
Technical Specs
Resources
Product Details

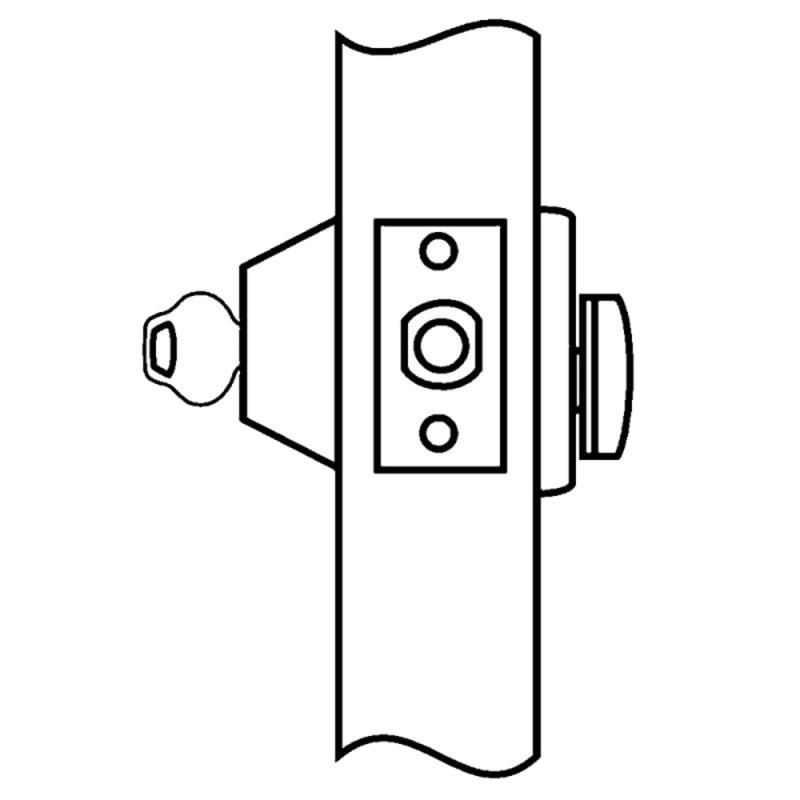

Non-handed cylindrical deadlock.
- Handing Non-handed.
- Door Thickness Standard: 1-3/4" (44mm). Optional door thicknesses available
- Backset Standard: 2-3/4" (70mm) Optional: 2-3/8" (60mm)
- Front Standard: brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
- Deadbolt 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
- Strike Standard; 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available; see Strikes, this page.
- Cylinder Standard: brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
- Keys Two nickel silver standard.
- Keying Features Available Master keying Construction master keying Security Visual key control Concealed key control
- Warranty One-year limited.
Product Specs
BASIC SPECS
ManufacturerCorbin Russwin
SkuDL3213 626 CL6
Unit of MeasureEach
Limited Warranty1 Year
Fire Rated3 Hours {A}
FINISH
Finish626/US26D
Finish DescriptionSatin Chrome
