LCN - Surface Closers

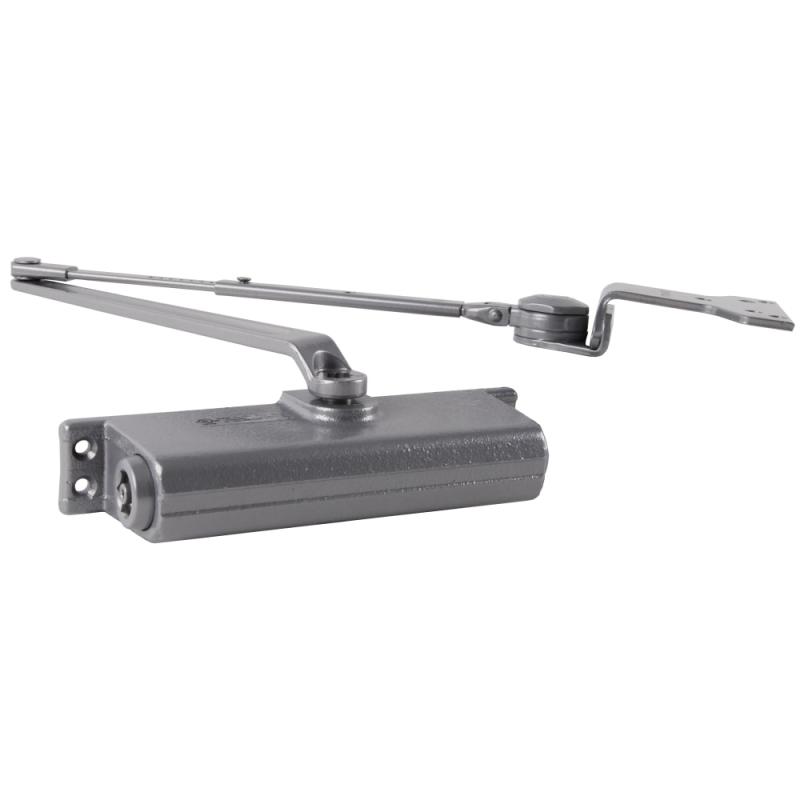

1261-H 689 LCN Door Closers and Operator
$252.36
Grade 1 Surface Door Closer, Hold Open Arm, Push or Pull Side Regular or Top Jamb Mounting, 180 Degree Swing, Size 1 to 5, No Cover, All Weather Fluid, Aluminum Finish, Non-Handed
In Stock Quantity: 20
Accessories
LCN1260-18 689$67.941260 Series Drop Plate, Narrow Top Rail or Flush Ceiling, Aluminum FinishIn Stock Quantity: 9
LCN1260-72 689$16.601260 Series Standard Slim Line Plastic Cover, Aluminum FinishIn Stock Quantity: 30
LCN1260-18QF 689$67.941260 Series Quick Fix Bracket Kit, Aluminum FinishIn Stock Quantity: 8
LCN1260-62A 689$46.611260 Series Auxiliary Shoe, Aluminum FinishIn Stock Quantity: 76
Product Info
Technical Specs
Resources
Product Details
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix™ bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Slim Line cover
Product Specs
BASIC SPECS
ManufacturerLCN
Sku1261-H 689
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty20 Years
FINISH
Finish689/US28
Finish FamilyMatte Silver
