LCN - Surface Closers

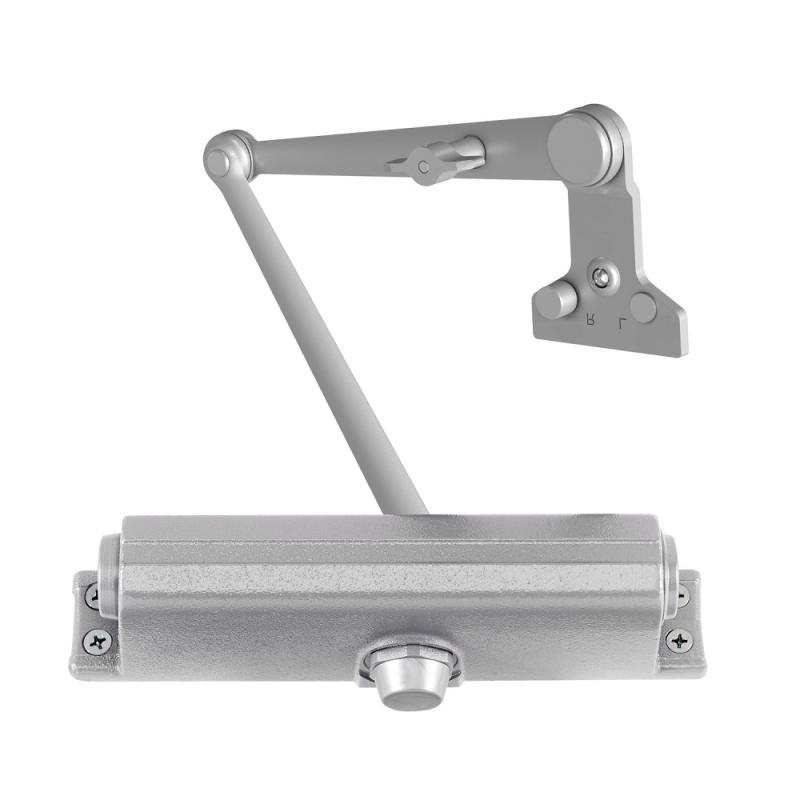

1261-HCUSH 689 LCN Door Closers and Operator

$345.64

Grade 1 Surface Door Closer, Hold Open Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Degree Swing, Size 1 to 5, No Cover, All Weather Fluid, Aluminum Finish, Non-Handed

In Stock Quantity: 76

Product Info
Technical Specs
Resources

Product Details

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

  • Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
  • Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
  • Mounts to most common commercial footprint (3/4” x 9 1/16”)
  • Closer meets ADA requirements. See 1260 Series catalog page 10
  • Optional Quick Fix™ bracket kit
  • Standard or optional custom powder coat finish
  • Optional SRI primer for installations in corrosive conditions
  • Optional Slim Line cover

Product Specs

BASIC SPECS
ManufacturerLCN
Sku1261-HCUSH 689
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty20 Years
FINISH
Finish689/US28
Finish FamilyMatte Silver
