LCN - Surface Closers

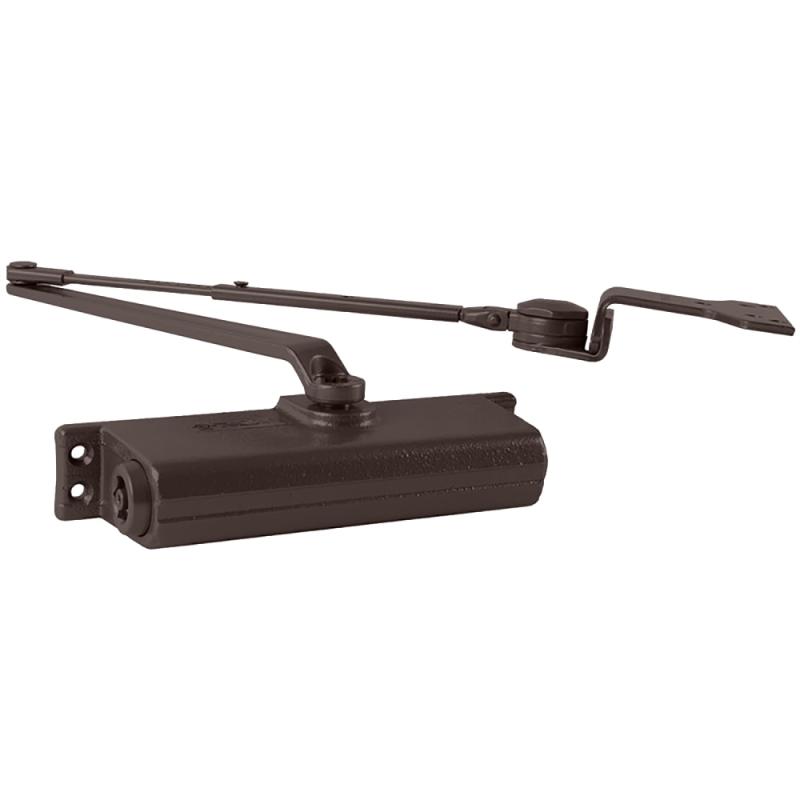

1261-HW/PA 695 LCN Door Closers and Operator
$255.05
Grade 1 Surface Door Closer, Hold Open Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, 180 Degree Swing, Size 1 to 5, No Cover, All Weather Fluid, Dark Bronze Finish, Non-Handed
In Stock Quantity: 29
Accessories
LCN1260-18PA 695$67.941260 Series Drop Plate, Parallel Arm Mount with Narrow Top Rail, Dark Bronze FinishIn Stock Quantity: 15
LCN1260-18 695$67.941260 Series Drop Plate, Narrow Top Rail or Flush Ceiling, Dark Bronze FinishAvailable to Order
Ships in 2 - 3 weeks
LCN1260-72 695$16.601260 Series Standard Slim Line Plastic Cover, Dark Bronze FinishIn Stock Quantity: 35
LCN1260-62A 695$46.611260 Series Auxiliary Shoe, Dark Bronze FinishIn Stock Quantity: 22
Similar Products
FalconSC61A HWPA DKB$156.59Grade 1 Light-Medium Duty Surface Door Closer, Hold Open Arm, Push or Pull Side Tri Mount, Size 1 to 5, Less Cover, Dark Bronze Painted Finish, Non-HandedIn Stock Quantity: 39
LCN1250-Hw/PA 695$180.79Grade 1 Surface Closer, Hold Open Arm, PA Shoe, Push or Pull Side Mounting, 180 Deg. Swing, Adjustable Size 1 to 5, No Cover, Dark Bronze Finish, Non-HandedIn Stock Quantity: 13
Norton1601H 690$144.77Grade 1 Tri Mount Surface Closer, Pull Side, Regular, Friction Hold, 90 to 180 Deg. Swing, Adjustable Size 1-6, Dark Bronze Painted Finish, Non-HandedIn Stock Quantity: 31
Yale151 690$250.56Door Closer, Tri-Packed (Regular, Parallel, Top Jamb Mounting), Size 1-6, Dark BronzeIn Stock Quantity: 31
Product Info
Technical Specs
Resources
Product Details
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix™ bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Slim Line cover
Product Specs
BASIC SPECS
ManufacturerLCN
Sku1261-HW/PA 695
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty20 Years
FINISH
Finish695
Finish FamilyDark Bronze
