LCN - Surface Closers

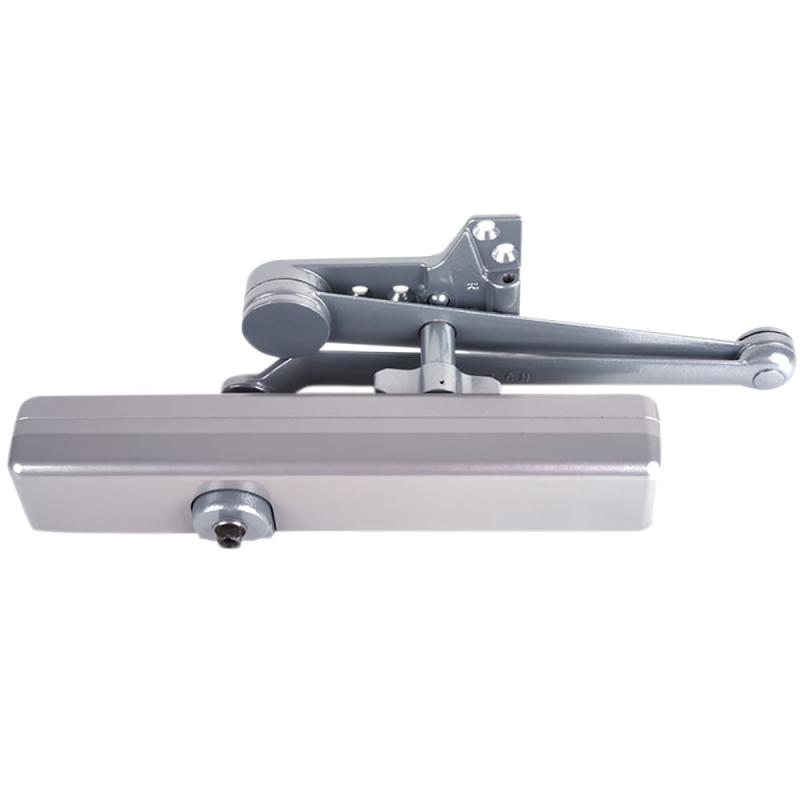

1461-SCUSH 689 LCN Door Closers and Operator
$470.26
Grade 1 Parallel Arm Surface Closer, Push Side, Parallel Arm Heavy Duty Stop, Spring Stop, Slim Plastic Cover, 100 Deg. Swing, Spring Cush-n-Stop Arm, Satin Brass Finish, Non-Handed
In Stock Quantity: 80
Accessories
LCN1460-18PA 689$67.94Drop Plate for 1460 Series, For Use With Parallel Arm, Aluminum Painted FinishIn Stock Quantity: 88
LCN1460-419 689$75.05Panel Adapter for 1460 Series, Aluminum Painted FinishIn Stock Quantity: 116
LCN1460-61 689$28.44Spacer for 1460 Series, Aluminum Painted FinishIn Stock Quantity: 17
LCN1460-30 689$23.70Cush Shoe Support for 1460 Series, Aluminum Painted FinishIn Stock Quantity: 862
Similar Products
FalconSC81A SS AL$261.17Grade 1 Medium Duty Surface Door Closer, Spring-n-Stop Arm, Push Side Parallel Arm Mount, Size 1 to 6, Slim Plastic Cover, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 30
NortonCPS8301 689$460.32Grade 1 Surface Closer, Hydraulic Parallel Arm Push Side Mounting, Parallel Arm Heavy Duty with 85 Deg. to 110 Deg. Swing, Spring Stop, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 33
Yale3331 689$517.86Door Closer, Stop Only w/Spring, Non-Hold Open, Size 1-6, Slim Line Cover, AluminumAssembled from stock components. Call for availability.
Product Info
Technical Specs
Resources
Product Details
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Product Specs
BASIC SPECS
ManufacturerLCN
Sku1461-SCUSH 689
GradeGrade 1
InstallationCommercial
Unit of MeasureEach
Limited Warranty30 Years
FINISH
Finish689/US28
Finish FamilyMatte Silver
