LCN - Surface Closers

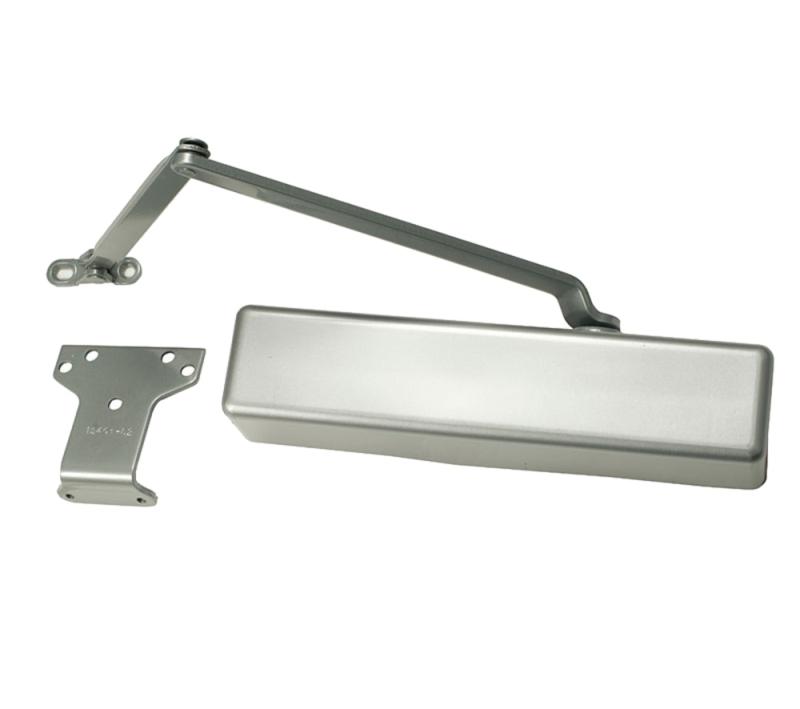

1461-SCUSH 689 FC LCN Door Closers and Operator
$504.00
Grade 1 Parallel Arm Surface Closer, Push Side, Parallel Arm Heavy Duty Stop, Spring Stop, Full Plastic Cover, 100 Deg. Swing, Spring Cush-n-Stop Arm, Aluminum Painted Finish, Non-Handed
Assembled from stock components. Call for availability.
Accessories
LCN1460-18PAFC 689$71.06Drop Plate for 1460 Series, For Use With Parallel Arm and Full Cover, Aluminum Painted FinishIn Stock Quantity: 15
LCN1460-419 689$78.62Panel Adapter for 1460 Series, Aluminum Painted FinishIn Stock Quantity: 2
LCN1460-61 689$29.48Spacer for 1460 Series, Aluminum Painted FinishAssembled from stock components. Call for availability.
LCN1460-30 689$24.95Cush Shoe Support for 1460 Series, Aluminum Painted FinishAssembled from stock components. Call for availability.
Similar Products
NortonCPS8501 689$464.16Grade 1 Closer Plus Spring Parallel Arm Door Closer, Push Side, Parallel Arm Heavy Duty, Adjustable Size 1 to 6, Plastic Cover, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 50
Sargent1431-CPS TB EN$578.34Surface Door Closer, Heavy Duty Parallel Arm with Compression Stop, Thru Bolts, Sprayed Aluminum EnamelIn Stock Quantity: 49
FalconSC81A SS AL FC$287.82Grade 1 Medium Duty Surface Door Closer, Spring-n-Stop Arm, Push Side Parallel Arm Mount, Size 1 to 6, Full Plastic Cover, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 6
LCN1450-SCUSH 689$337.44Grade 1 Cast Aluminum Surface Mount Closer, Size 1-6 Adjustable, Double Lever Arm, Soffit Spring Stop, Non-Handed, Slim Plastic Cover, Aluminum Painted FinishIn Stock Quantity: 26
Product Info
Technical Specs
Resources
Product Details
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Product Specs
BASIC SPECS
ManufacturerLCN
Sku1461-SCUSH 689 FC
GradeGrade 1
InstallationCommercial
Unit of MeasureEach
Limited Warranty30 Years
FINISH
Finish FamilyMatte Silver
