LCN - Surface Closers

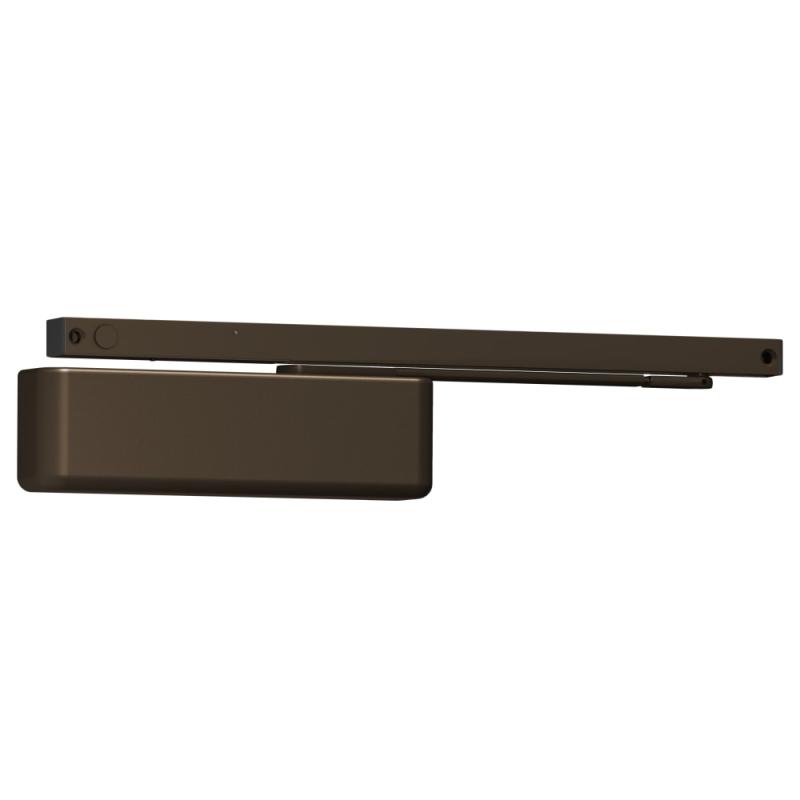

4040SE-STD 24V 695 LCN Door Closers and Operator
$847.08
Grade 1 Surface Door Closer, Slide Track Arm Standard with Hold Open, 110 Deg. Hold, Plastic Cover, 24V, Dark Bronze Painted Finish, Non-Handed
In Stock Quantity: 18
Accessories
LCN4040SE-3210$86.114040SE Series SE Transformer from 120V to 24VIn Stock Quantity: 23
LCN4040SE-81$9.484040SE Series Conduit Quick Connector with Ring, For Use With 1/2" ConduitIn Stock Quantity: 17
LCN4040SE-18 695$67.944040SE Series Drop Plate, Narrow Top Rail or Flush Ceiling, Dark Bronze Painted FinishIn Stock Quantity: 5
Product Info
Technical Specs
Resources
Product Details
Heavy duty, non-handed and non-sized, designed to provide a single point hold-open for fire and smoke barrier doors.
The door is held open until current interruption releases the holding mechanism and the door closes.
- Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
- Non-sized cylinders for interior doors to 4'0".
- Hold-open force is adjustable.
- Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable.
- Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
- Closer mounts on either push or pull side of the door.
- Non-handed for mounting on either right or left hand door.
- Concealed or surface wiring.
- Interfaces with alarm systems. Consult factory for full details.
- Standard or optional custom powder coated finishes on cover and arm.
- Optional plated finishes
Product Specs
BASIC SPECS
ManufacturerLCN
Sku4040SE-STD 24V 695
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty2 Years
FINISH
Finish695
Finish FamilyDark Bronze
