LCN - Surface Closers

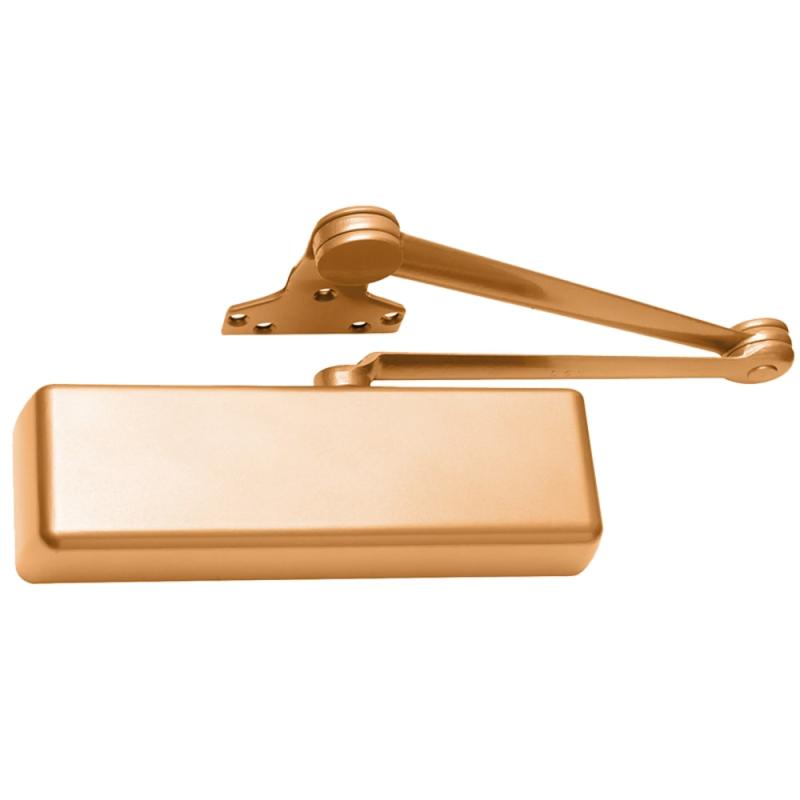

4040XP-EDA 691 LCN Door Closers and Operator
$516.65
Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Plastic Cover, Light Bronze Painted Finish,
In Stock Quantity: 20
Accessories
LCN4040XP-419 691$75.05Panel Adaptor, Light Bronze FinishIn Stock Quantity: 2
LCN4040XP-61 691$28.44Spacer, Light Bronze FinishAvailable to Order
Ships in 2 - 3 weeks
LCN4040XP-18PA 691$67.94Drop Plate, Required for Parallel Arm Mounting Where Top Rail is Less than 5-1/2", Light Bronze FinishIn Stock Quantity: 25
Similar Products
Product Info
Technical Specs
Resources
Product Details
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4" journal diameter
- Widest bearing ever, at 5/8"
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Product Specs
BASIC SPECS
ManufacturerLCN
Sku4040XP-EDA 691
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty30 Years
Fire Rated3 Hours {A}
FINISH
Finish691/US10
Finish FamilyMatte Bronze
