LCN - Surface Closers

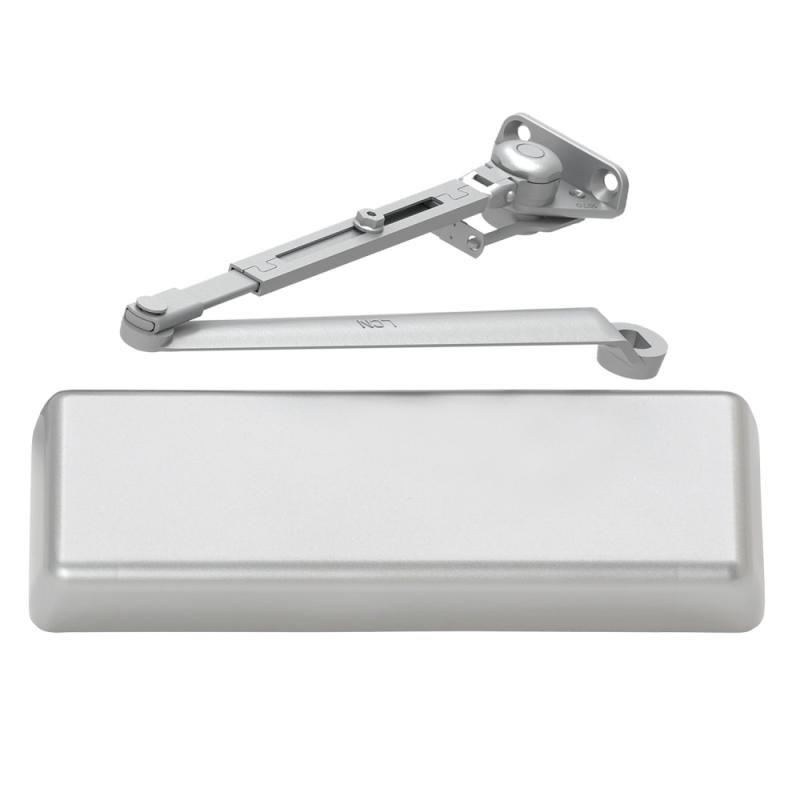

4111-FL/62 RH 689 LCN Door Closers and Operator
$593.40
Grade 1 Surface Door Closer, Fusible Link Arm, 62 Shoe, Parallel Arm Mounting, Push Side, 180 Degree Swing, Size 1 to 5, Full Plastic Cover, Aluminum Painted, Right Hand
In Stock Quantity: 17
Accessories
LCN4110-18 689$71.06Drop Plate, Narrow Top Rail or Flush Ceiling, Aluminum Painted FinishIn Stock Quantity: 205
Product Info
Technical Specs
Resources
Product Details
The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.
- Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
- Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts parallel arm, specify right or left swinging door
- 4111 cylinder meets ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- The 4110 Series is UL and cUL listed for self-closing doors without holdopen
- Tested and certified under ANSI Standard A156.4, grade one
Product Specs
BASIC SPECS
ManufacturerLCN
Sku4111-FL/62 RH 689
GradeGrade 1
InstallationCommercial
Unit of MeasureEach
Limited Warranty30 Years
FINISH
Finish689
Finish FamilyMatte Silver
