LCN - Surface Closers

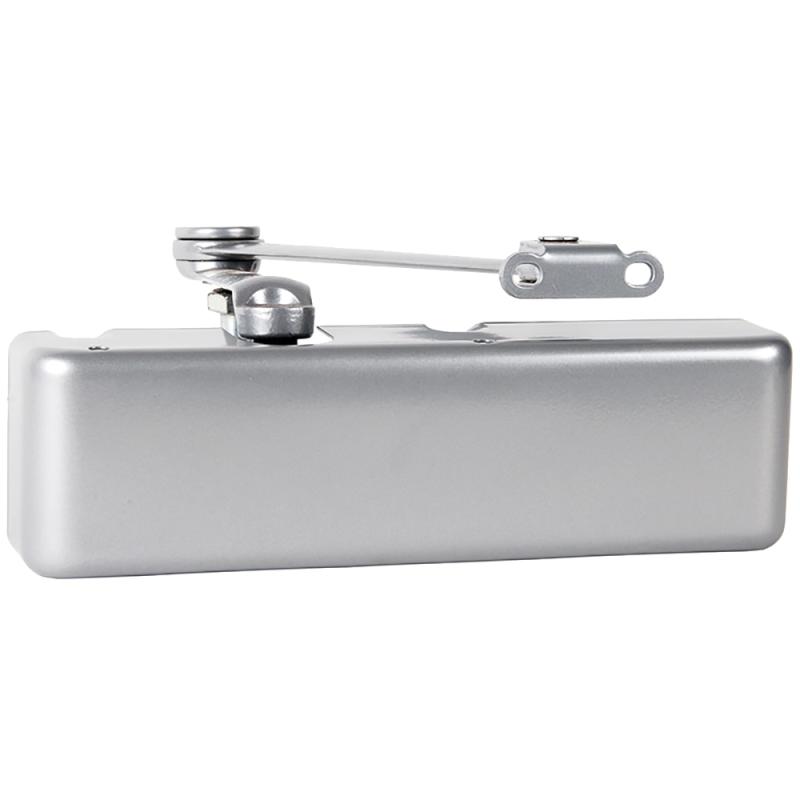

4511-EDA LH 689 LCN Door Closers and Operator
$548.40
Extra Duty Arm Door Closer, Left Hand, Aluminum
Available to Order
Ships in 2 - 3 weeks
Accessories
LCN4510-18 689$76.96Drop Plate, Narrow Top Rail or Flush Ceiling, AluminumAvailable to Order
Ships in 3 - 4 weeks
Product Info
Technical Specs
Resources
Product Details
The 4510 Series is built for high security settings and has special components to minimize tampering and vandalism.
The 4510 Series is made of forged steeel double lever arms and heavy gauge metal security covers that are designed for high traffic applications. The closer has passed 10,000,000 cycles in independent testing.
- Standard 4510 series closer shipped with extra duty arm (non hold-open), metal security cover, and TORX Machine Screw pack
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
- Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, specify right or left swinging door
- 4511 cylinder meets ADA requirements
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- UL listed for self-closing doors
- Tested and certified under ANSI Standard A156.4, grade one
Product Specs
BASIC SPECS
ManufacturerLCN
Sku4511-EDA LH 689
GradeGrade 1
InstallationCommercial
Unit of MeasureEach
Limited Warranty2 Years
FINISH
Finish FamilyMatte Silver
