Norton - Surface Closers

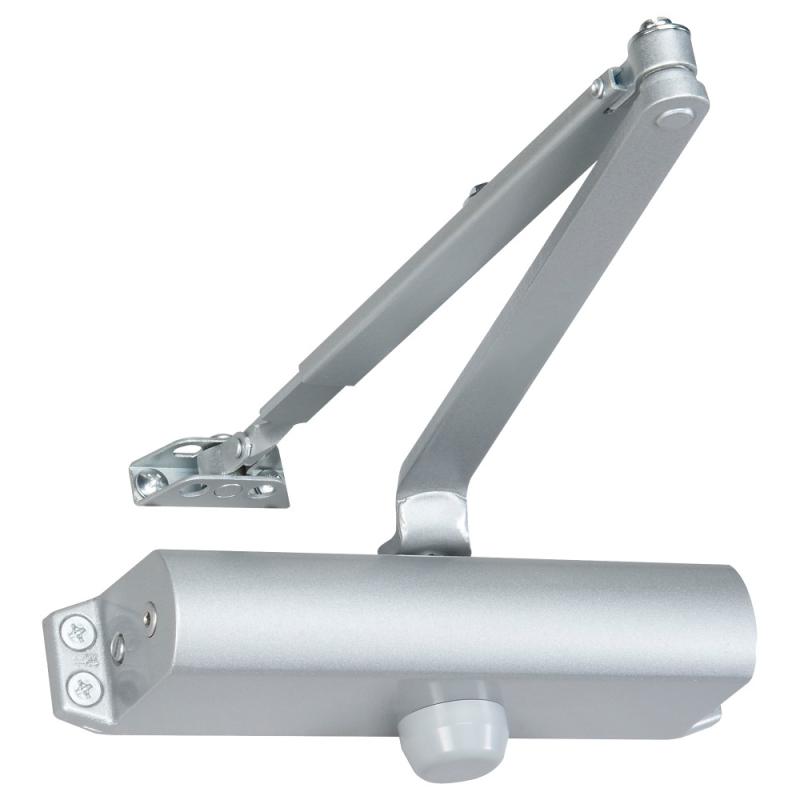

161BF TPN 689 Norton Door Closers and Operator
$142.56
Tri-Packed Door Closer, Barrier Free, Adjustable Size 1-4, Aluminum Painted
In Stock Quantity: 47
Accessories
Norton1688 689$36.18Drop Plate, Overhead Holder or Narrow Top Jamb, 1600 Series, AluminumIn Stock Quantity: 39
Norton1687 689$36.18Drop Plate, Low Ceiling Clearance, 1600 Series, AluminumIn Stock Quantity: 49
Norton2022 689$59.12Angle Bracket, Flush Transom, 1600, 7500, 8000, 78-B/F Series, AluminumIn Stock Quantity: 9
Similar Products
DexterDCL2000-STD LESS-RW/PA AL$54.74Grade 1 Surface Closer, Tri Mount (Regular, Parallel or Top Jamb Mounted), Regular Arm, Adjustable Backcheck, Less Cover, Size 1 to 6, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 281
FalconSC61A RWPA AL$136.94Grade 1 Light-Medium Duty Surface Door Closer, Regular Arm, Push or Pull Side Tri Mount, Size 1 to 5, Less Cover, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 331
LCN1250-RW/PA 689$119.41Grade 1 Surface Closer, Regular Arm, PA Shoe, Push or Pull Side Mounting, 180 Deg. Swing, Adjustable Size 1 to 5, No Cover, Aluminum Finish, Non-HandedIn Stock Quantity: 305
LCN1261-RW/PA 689$231.86Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, 180 Degree Swing, Size 1 to 5, No Cover, All Weather Fluid, Aluminum Finish, Non-HandedIn Stock Quantity: 213
Product Info
Technical Specs
Resources
Product Details
The 160 Series door closer, is ideal for stocking distributors serving high volume aftermarket and storefront segments.
The 160 features an adjustable spring, tri-packed, non-hold open arms and independent and separate latch, sweep and backcheck intensity valves. Featuring easy installation and maintenance and dependable control, the 160 is perfect for office doors, utility doors and strip mall applications.
- Two models:
- 161BF: adjustable spring size 1 through 4
- 164: size 4 spring
- Non-handed
- Cast aluminum body
- Rack-and-pinion design
- Independent latch sweep and backcheck intensity valves\
- Non-hold open arms: 161BF, 164
- Hold open arms: 161BF only
- Closer footprint: 3/4" x 9-1/16"
- Closer projection: 2-5/8"
- Available in 689 (aluminum) or 690 (dark bronze) finishes
Product Specs
BASIC SPECS
ManufacturerNorton
Sku161BF TPN 689
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty5 Years
Fire Rated3 Hours {A}
FINISH
Finish689/US28
Finish FamilyMatte Silver
