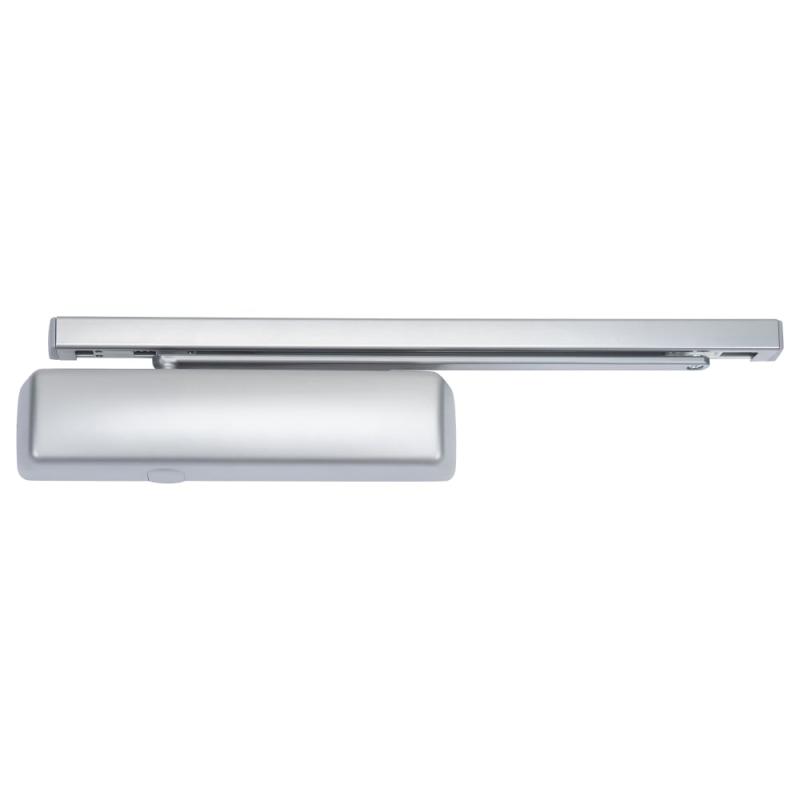

2800ST 689 Norton Door Closers and Operator

The cam action design is ideal as it provides greater efficiency than a rack and pinion door closer for slide track applications. Cam action closers provide a lower opening resistance while delivering optimum closing force and control. The door closer's wide range of adjustable closing power permits use in the most demanding situations.

• Door Controls: (interior) (exterior) swinging door(s) shall be cam and roller design contained within a precision cast aluminum housing.
• Door closing force shall be adjustable to ensure adequate closing control.
• Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
• Door closer shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently.
• Maximum door open shall be templated to (85°), (90°), (100°), (110°), conditions permitting.
• Door closer shall have hold open capability with an on/off selector and tension adjustment.
• Non-hold open units shall be U.L. Listed for self-closing door.
• Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA). ANSI standards A117.1.
• Units shall meet C-UL US.
