Norton - Surface Closers

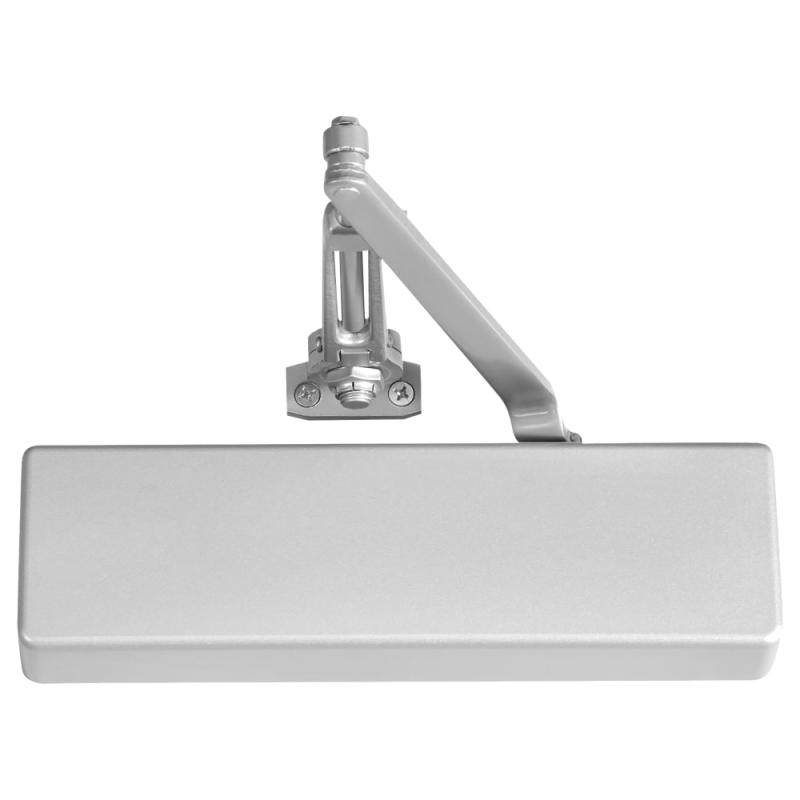

7500H 689 Norton Door Closers and Operator
$406.26
Grade 1 Tri Mount Friction Hold Open Door Closer, Push or Pull Side, Regular Arm, Size 1 to 6, Plastic Cover, Aluminum Painted Finish, Non-Handed
In Stock Quantity: 140
Accessories
Norton7786 689$76.68Drop Plate, Narrow Frame, 7500 Series, AluminumIn Stock Quantity: 26
Norton7788 689$76.68Drop Plate, Narrow Top Rail, 7500 Series, AluminumIn Stock Quantity: 199
NortonSN-134 689$8.24Sex Nuts Only, 1-3/4" Doors, Pack of 4, AluminumIn Stock Quantity: 172
Norton2022 689$59.12Angle Bracket, Flush Transom, 1600, 7500, 8000, 78-B/F Series, AluminumIn Stock Quantity: 9
Similar Products
Corbin RusswinDC6210 A1 689 M54$460.62Grade 1 Surface Door Closer, Double Lever Arm Friction Hold Open, Push or Pull Side Mount, Size 1 to 6, Full Cover, Non-Handed, Aluminum PaintedIn Stock Quantity: 24
FalconSC71A HWPA AL$287.17Grade 1 Heavy Duty Surface Door Closer, Hold Open Arm, Push or Pull Side Tri Mount, Size 1 to 6, Full Plastic Cover, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 117
LCN4050A-HW/PA 689$469.94Hold Open Arm w/62PA Shoe Door Closer, AluminumIn Stock Quantity: 93
Sargent351-UH TB EN$543.24Surface Door Closer, Universal Hold Open Arm, Thru Bolts, Sprayed Aluminum EnamelIn Stock Quantity: 26
Product Info
Technical Specs
Resources
Product Details
Institutional heavy-duty door closer.
The 7500 Series is an institutional Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability.
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy body.
- Closers shall be surface mounted and shall project no more that 2-3/16" (55mm) from the surface of the door.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have backcheck cushioning controlled by a hex key adjusted valve.
- Closers shall have backcheck position controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
- [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, brass or stainless steel material and all fasteners of stainless steel.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/–7-1/2% ) power adjustment.
- Environmental Product Declaration (EPD) certified
Product Specs
BASIC SPECS
ManufacturerNorton
Sku7500H 689
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty25 Years
Fire RatedNo
FINISH
Finish689/US28
Finish FamilyMatte Silver
