Norton - Surface Closers

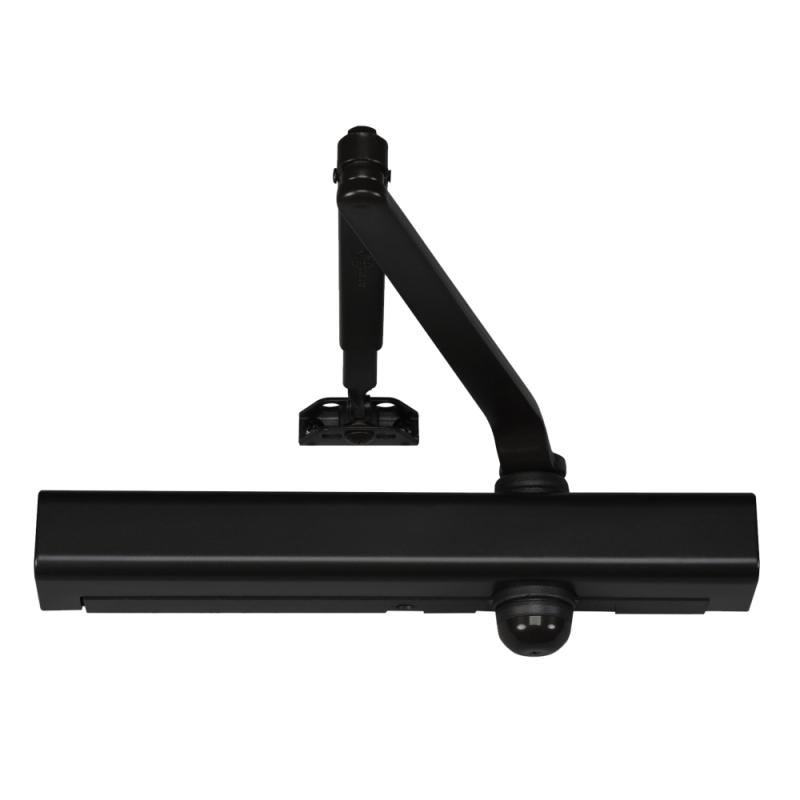

8301 693 Norton Door Closers and Operator
$174.53
Grade 1 Surface Closer, Hydraulic Tri Mount Push or Pull Side Mounting, Regular Arm, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Black Painted Finish, Non-Handed
In Stock Quantity: 65
Accessories
Norton6891 693$74.02Clearance/Support Blade Stop, 1600, 7500, 8000, 78-B/F Series, BlackIn Stock Quantity: 12
Norton8146 693$45.36Drop Plate, Narrow Top Rail, 8000 Series, BlackIn Stock Quantity: 8
Norton8148 693$45.36Drop Plate, Low Ceiling Clearance, 8000 Series, BlackIn Stock Quantity: 7
NortonSN-134 693$8.24Sex Nuts Only, 1-3/4" Doors, Pack of 4, BlackIn Stock Quantity: 34
Similar Products
LCN1461-RW/PA 693$337.96Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Regular, Slim Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Black Painted Finish, Non-HandedIn Stock Quantity: 123
Yale3301 693$327.24Door Closer, Tri-Packed (Regular, Parallel, Top Jamb Mont), Non-Hold Open, Size 1-6, Slim Line Cover, BlackIn Stock Quantity: 66
Product Info
Technical Specs
Resources
Product Details
The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.
With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
- **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
- Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
Product Specs
BASIC SPECS
ManufacturerNorton
Sku8301 693
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty25 Years
Fire Rated3 Hours {A}
FINISH
Finish693
Finish FamilyBlack
