Norton - Surface Closers

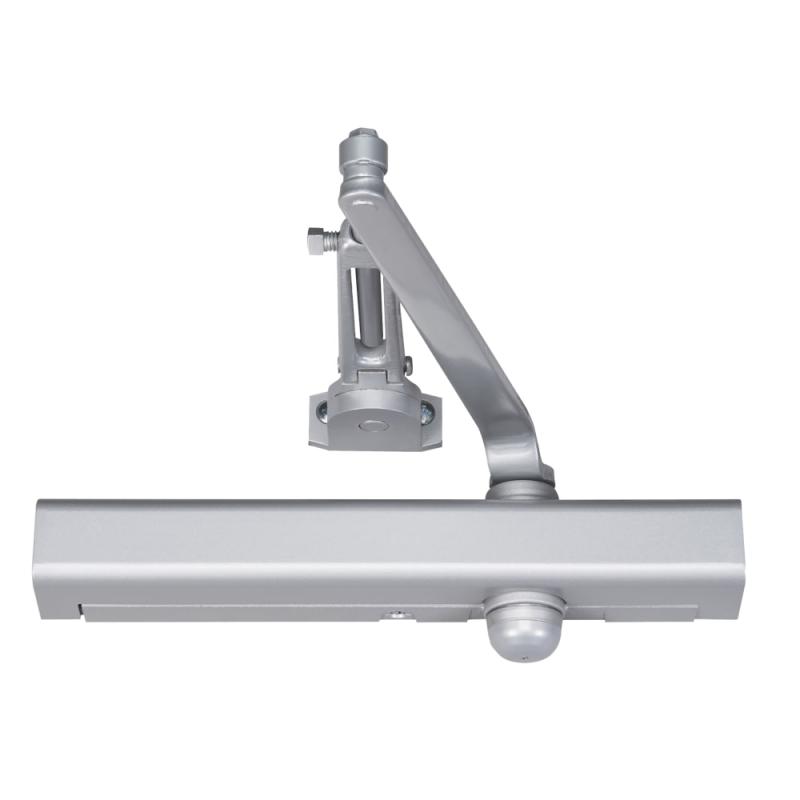

8301H 689 Norton Door Closers and Operator
$196.42
Grade 1 Surface Closer, Hydraulic Tri Mount Push or Pull Side Mounting, Regular Arm, Adjustable Friction Hold Open, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Aluminum Painted Finish, Non-Handed
In Stock Quantity: 25
Accessories
Norton8148 689$45.36Drop Plate, Low Ceiling Clearance, 8000 Series, AluminumIn Stock Quantity: 59
Norton8146 689$45.36Drop Plate, Narrow Top Rail, 8000 Series, AluminumIn Stock Quantity: 21
Norton6891 689$74.02Clearance/Support Blade Stop, 1600, 7500, 8000, 78-B/F Series, AluminumIn Stock Quantity: 55
NortonSN-134 689$8.24Sex Nuts Only, 1-3/4" Doors, Pack of 4, AluminumIn Stock Quantity: 168
Similar Products
FalconSC81A HWPA AL$190.09Grade 1 Medium Duty Surface Door Closer, Hold Open Arm, Push or Pull Side Tri Mount, Size 1 to 6, Slim Plastic Cover, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 49
LCN1461-HW/PA 689$364.91Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Slim Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Aluminum Painted Finish, Non-HandedIn Stock Quantity: 214
Yale3311 689$368.28Door Closer, Tri-Packed (Regular, Parallel, Top Jamb Mont), Hold Open, Size 1-6, Slim Line Cover, AluminumIn Stock Quantity: 55
DexterDCM1000-STD-SLIM-HW/PA AL$83.46Grade 1 Surface Closer, Tri Mount (Regular, Parallel or Top Jamb Mounted), Hold Open Arm, Hold Open, Adjustable Backcheck, Slim Cover, Size 1 to 6, Aluminum Painted Finish, Non-HandedAvailable to Order
Ships in 3 - 4 weeks
Product Info
Technical Specs
Resources
Product Details
The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.
With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
- **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
- Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
Product Specs
BASIC SPECS
ManufacturerNorton
Sku8301H 689
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty25 Years
Fire RatedNo
FINISH
Finish689/US28
Finish FamilyMatte Silver
