Norton - Surface Closers

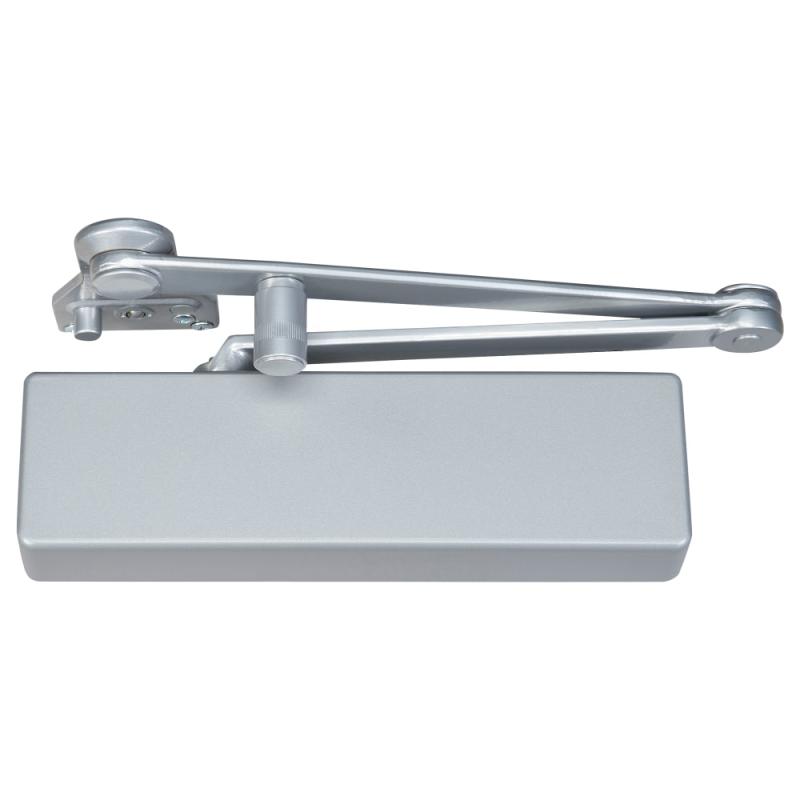

CLP7500 689 Norton Door Closers and Operator
$451.68
Grade 1 Closer Plus Parallel Arm Door Closer, Push Side, Parallel Arm Heavy Duty, Size 1 to 6, Plastic Cover, Aluminum Painted Finish, Non-Handed
Assembled from stock components. Call for availability.
Accessories
Norton7788 689$76.68Drop Plate, Narrow Top Rail, 7500 Series, AluminumAvailable to Order
Ships in 3 - 4 weeks
Norton2019S 689$13.61Spacer Block, Standard, 1600, 7500, 8000, 78-B/F Series, AluminumAvailable to Order
Ships in 3 - 4 weeks
Norton6891 689$74.02Clearance/Support Blade Stop, 1600, 7500, 8000, 78-B/F Series, AluminumAvailable to Order
Ships in 3 - 4 weeks
NortonRP75-4040 689$103.57Retrofit Plate, Replaces LCN 4040, 7500 SeriesAvailable to Order
Ships in 3 - 4 weeks
Similar Products
Corbin RusswinDC6210 A4 689 M54$473.04Grade 1 Surface Door Closer, Regular, Push or Pull Side Mount, Size 1 to 6, Full Cover, Non-Handed, Aluminum PaintedAvailable to Order
Ships in 5 - 6 weeks
FalconSC71A DS AL$313.74Grade 1 Heavy Duty Surface Door Closer, Dead Stop Arm, Push Side Parallel Arm Mount, Size 1 to 6, Full Plastic Cover, Aluminum Painted Finish, Non-HandedAssembled from stock components. Call for availability.
Sargent351-PS TB EN$552.42Surface Door Closer, Heavy Duty Parallel Arm with Positive Stop, Thru Bolts, Sprayed Aluminum EnamelAssembled from stock components. Call for availability.
Yale4420 689$508.14Door Closer, Stop Only, Non-Hold Open, Size 1-6, AluminumAssembled from stock components. Call for availability.
Product Info
Technical Specs
Resources
Product Details
Institutional heavy-duty door closer.
The 7500 Series is an institutional Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability.
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy body.
- Closers shall be surface mounted and shall project no more that 2-3/16" (55mm) from the surface of the door.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have backcheck cushioning controlled by a hex key adjusted valve.
- Closers shall have backcheck position controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
- [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, brass or stainless steel material and all fasteners of stainless steel.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/–7-1/2% ) power adjustment.
- Environmental Product Declaration (EPD) certified
Product Specs
BASIC SPECS
ManufacturerNorton
SkuCLP7500 689
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty25 Years
Fire Rated3 Hours {A}
FINISH
Finish FamilyMatte Silver
