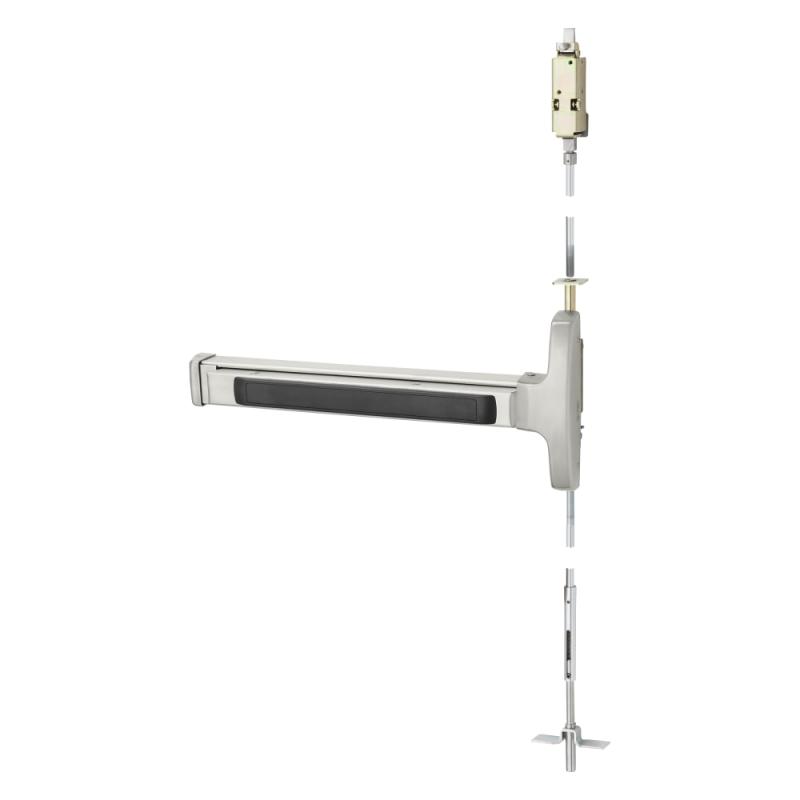

1256-MD8474E RHR 32D Sargent Exit Device

The 8400 Series is designed for narrow stile applications and is UL Fire and Panic lsited. This series is available in several finishes.

• Door Types Hollow metal, 1-3/4" (44 mm) minimum thickness. For doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31- 1-3/4" (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" (35mm) square
• Rail sizes as Rails are available in 4 sizes, use door width to determine size needed. determined by Rails will be factory cut to size, if door width is supplied door width • E Rail for 24" to 32" door widths • F Rail for 33" to 36" door widths • J Rail for 37" to 42" door widths • G Rail for 43" to 48" door widths
• Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
• Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options AL- Alarm BT- Beacon™ PL- SARGuide™ Photoluminescent Coated TL- SARGuide™ Illuminated Touchpad 53- LX Latchbolt Monitor 54- Outside Lever Monitoring 55- Request-to-Exit Signal - Rail Monitoring 56- Remote Latch Retraction 57- Delay Egress & Electromagnets 58- Electric Dogging 59- Electroguard – Self Contained Delayed Egress
• Mounting Fasteners Supplied standard with machine screws
• Top Bolt Stainless steel
• Device Centerline from 41" (1041mm) for Standard Applications Finished Floor 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
• Door/Opening Height Must be specified - 120" (3048mm) Max Door Opening
• Center Case Dimensions 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection Pushbar Neutral – 3" (76 mm) Pushbar Depressed – 2-1/8" (54mm)
