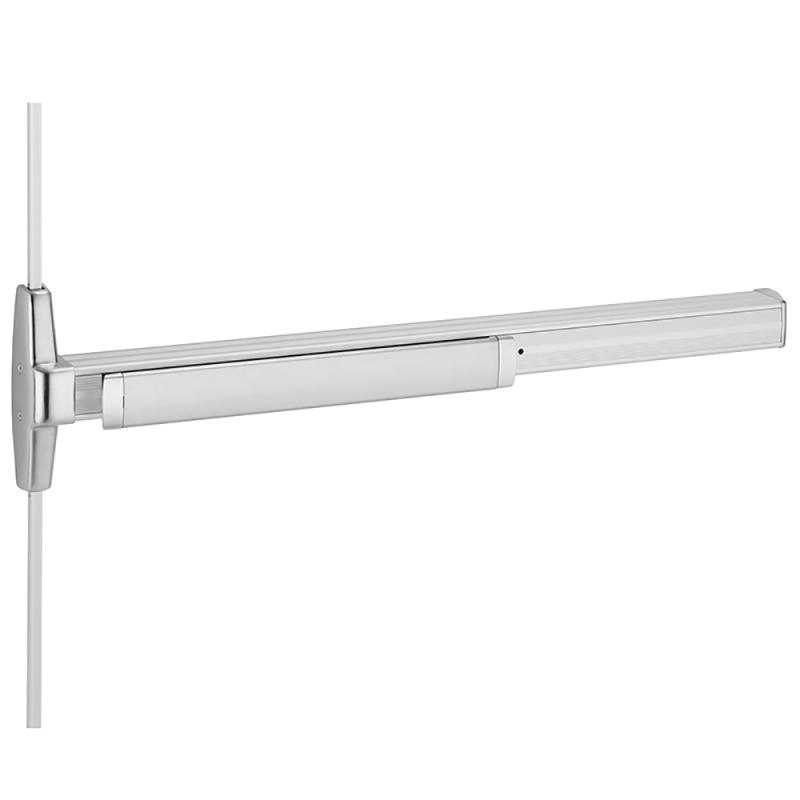

3527AEO 3 US28 Von Duprin Exit Device
$2,030.40
Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, 36", Exit Only, Less Trim, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Non-Handed
In Stock Quantity: 3
Product Info
Technical Specs
Resources
Product Details
For all types of single and double doors, UL listed for panic exit hardware.
The surface vertical rod device is non-handed except when the SS (signal switch) option is used.
- Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
- Device centerline from finished floor: 39 13/16" (1006mm) Center case dimensions 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
- Door undercut: 1 /4" (7mm)
- Top & bottom latch: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7'(2134mm) door Top rod length is 34 15/16" (887mm) Bottom rod length is 31 1/4" (794mm) Extension rods available 1' (205mm) or 3' (914mm) for doors over 7' One piece top rod available for 8' (2438mm) -10' (3048mm) door
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device) #325 SNB furnished for top and bottom latches
Product Specs
BASIC SPECS
ManufacturerVon Duprin
Sku3527AEO 3 US28
GradeGrade 1
InstallationCommercial
Unit of MeasureEach
Limited Warranty3 Years
FINISH
Finish628/US28
Finish DescriptionSatin Aluminum Clear Anodized
Finish FamilyMatte Silver
