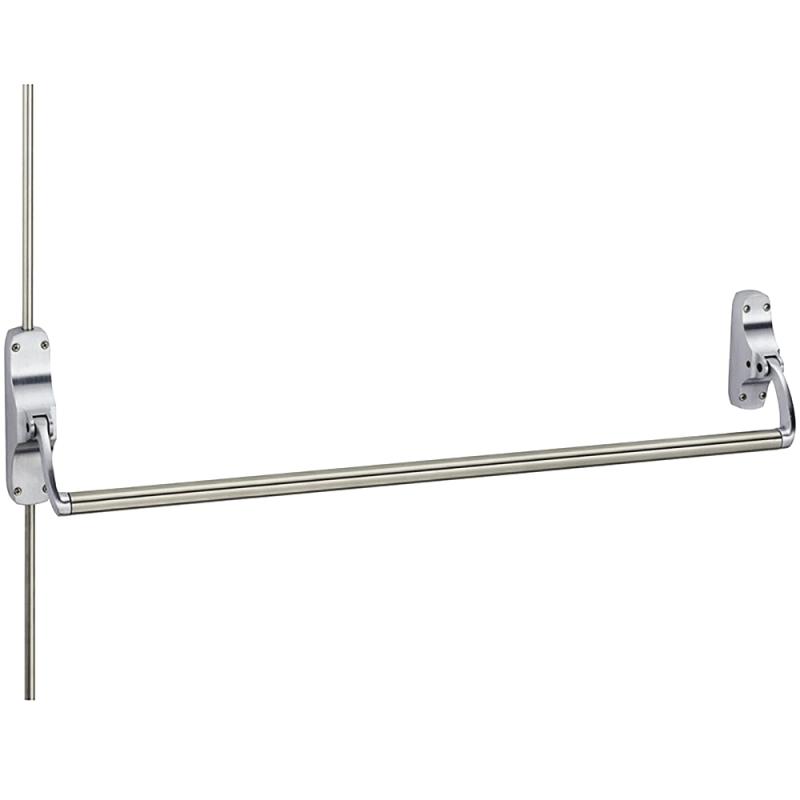

8827EO 26D Von Duprin Exit Device

UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2" (90 mm). This device is field sizable.

• Device functions Field reversible Device ships EO, DT, TP, K, L, TL
• Crossbar length 42" (1067 mm) field sizable
• Device centerline 3913/16"
• Crossbar centerline to finished floor 36 13/16" (935 mm) at center
• Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm) Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
• Faceplate 1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
• Cylinder backset 2 3/4" (70 mm)
• Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
• Crossbar tubing 1" (25 mm) outside diameter
• Projection Neutral – 4 7/8" (124 mm) Depressed – 4" (102 mm)
• Latchbolt 5 /8" (16mm) throw
• Fasteners and sex bolts (SBN) Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included
