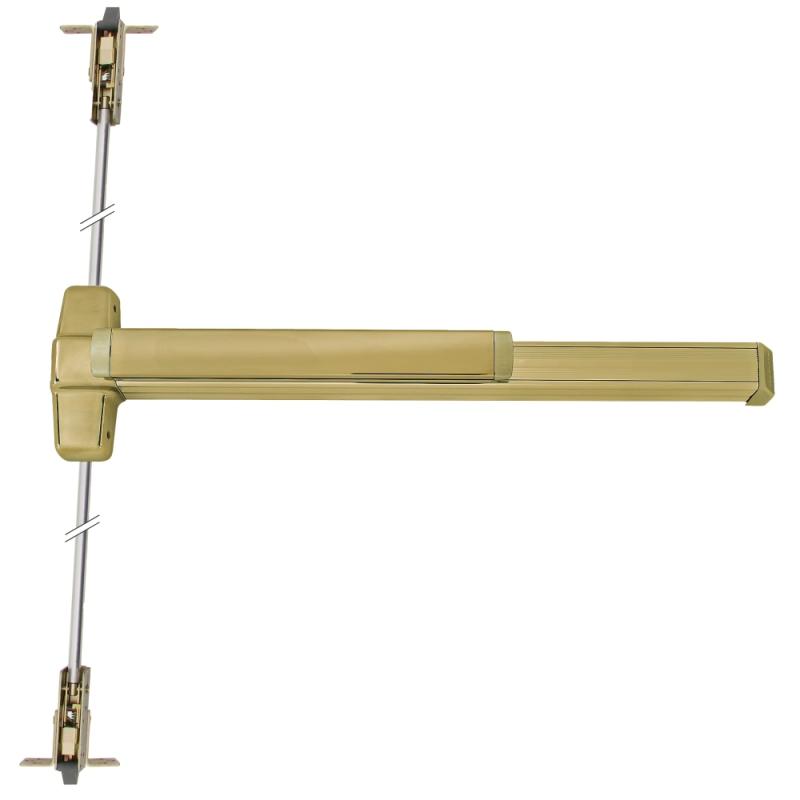

EL9947L-BE-18 4 US4 RHR Von Duprin Exit Device

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 with a grooved case.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths:
  • 2' — 2' (610 mm) Door size
  • 3' — 2' 4' to 3' (711 mm to 914 mm) door size
  • 4' — 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from finished floor:
  • 39-5/8" (1006 mm) Standard
  • Adjustable from 35-5/8" (905 mm) to 49-5/8" (1260 mm)
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57 mm x 57 mm)
• Projection:
  • Pushbar neutral — 3-13/16" (97 mm)
  • Pushbar depressed — 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16 mm) throw
• Door undercut: 1/4" (7 mm) recommended
• Top & bottom Latch case: 4-1/2" x 2-1/8" x 1-1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods:
  • Round 2-piece adjustable rods
  • Top rod adjustable from 6' 8" (2027 mm) to 8'4" (2533 mm).
  • Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm).
  • Extension rod kits available for doors over 8' 4" (2533 mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) to 2-1/4" (57 mm) thick metal doors. Optional 425 SNB available.
