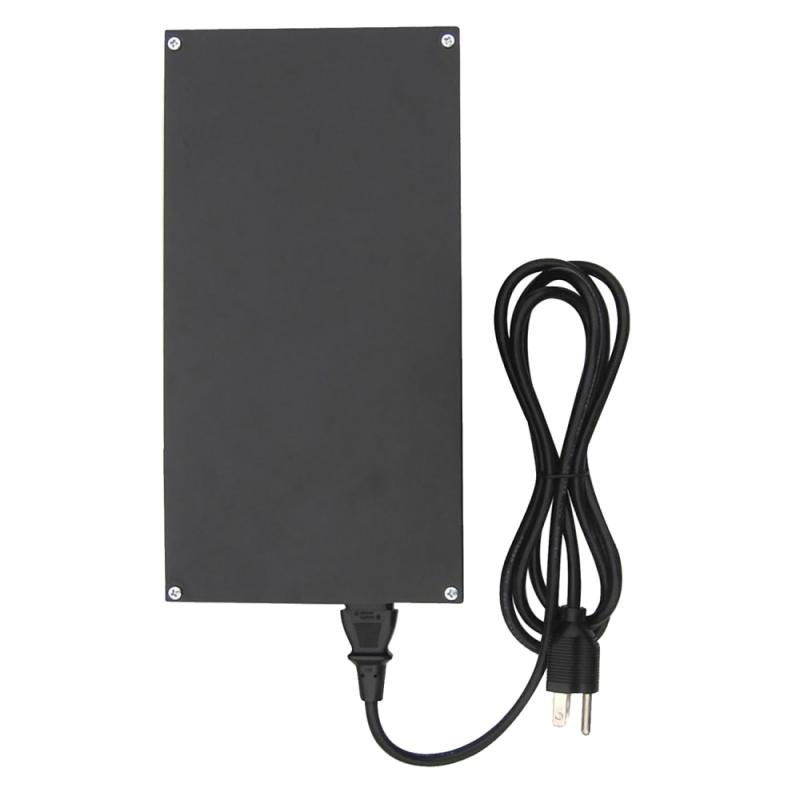

IS-PU-UL Aiphone Intercom

The IS system can unlock doors remotely on a network, assist onsite visitors from an offsite phone, broadcast emergency announcements, and communicate using a standard or PC Master Station.

• Power Source: IS-CCU, IS-SCU, IS-RCU, IS-IPC:  48V DC - Use IS-PU-UL
• IS-IPDV, IS-IPDVF, IS-IPMV:  24V DC - Use PS-2420UL or PoE (802.3af)
• Network: Interface:  10 BASE-T / 100 BASE-TX Ethernet,  Protocol:  TCP, UDP, IGMP (Multicast)
• Software: Processor: 2GHz or faster, RAM: minimum 1GB, Storage: 10MB or more (additional memory required for movie recording), Sound Card: 8-bit full duplex - DirectSound compatible, Display: 1024 x 786 or higher, Runtime: Microsoft.NET framework 2.0 or later, Network:  Wired 100Base-TX recommended, Operating System:  Windows XP (SP3), Windows Vista (SP1), or Windows 7
• Connections: RJ45 (10/100 Mbit Ethernet)
• Calling: Chime, image, and audio approx. 45 seconds
• Video Monitor: 3-1/2" direct-view TFT color LCD
• Min. Illumination: 5 Lux at 1' distance
• Night Viewing: Up to 1' from camera with white LED projected
• Door Release:Contact rating:  24V AC/DC, 500mA
