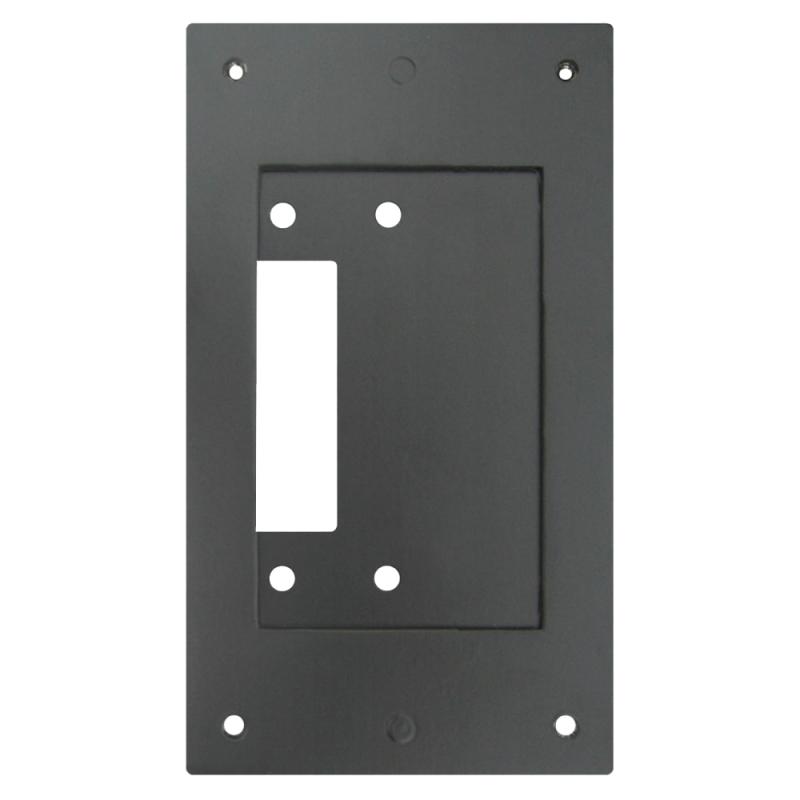

JK-MB Aiphone Intercom

The camera offers nearly twice the viewing width as conventional video intercoms and has master stations that feature picture memery.

• Power Source: 18V DC - Use PS-1820UL
• Calling: Chime, image and audio approx. 45 sec.
• Communication: AUTOMATIC (hands-free) - to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) -  to activate, push TALK button for 1 sec. or until talk LED turns on
• Video Monitor: 3-1/2” direct-view TFT color LCD
• Scanning Line: 525 lines
• Minimum illumination: 5 Lux at 1'-5/8" distance
• Night Viewing: Up to 1’-5/8"  from camera, with white LED projected, background beyond 1'-5/8" cannot be seen
• Door Release: Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
• Wiring: Door to master: 2-cond., mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
• Distance: Door to farthest master/sub master: 165’(22AWG) 330’(18AWG) Master to IER-2: 245’(22AWG) 490’(18AWG)
• Wire Type: Master to door: Aiphone #871802 Between masters/sub: Aiphone #871804
