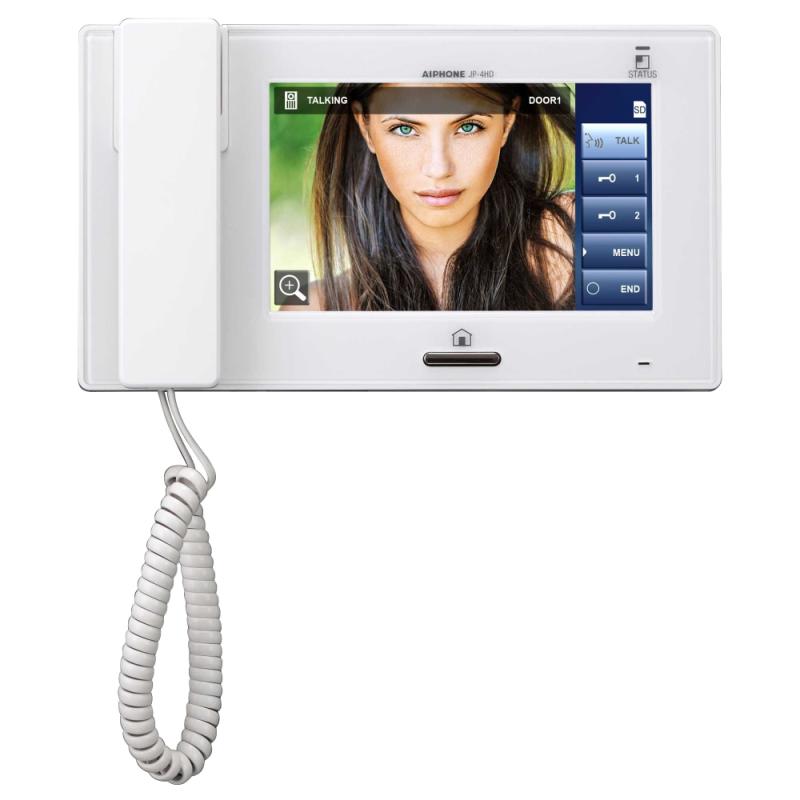

JP-4HD Aiphone Intercom

Hands-free and handset communication is featured on all inside stations and picture memory records images onto an SD/SDHC card.

• Power Source: 24V DC – use PS‑2420UL
• Communication: Hands-free (VOX) or handset (full-duplex)
• Video: Display 7" color LCD touchscreen
• Picture Memory: Internal / Built‑In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting; SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
• Camera: Type: 1/4" color CMOS; View Area: 100° vert. x 170° horiz.
• Door Release: N/O dry contact, 24V AC/DC, 500mA – use EL‑12S (use RY‑24L for larger contact rating and use RY‑3DL for 3~4 doors)
• Wire Type: Door Station to Master Station: 2‑cond., mid cap,

solid, non‑shielded – use Aiphone #871802
Power Supply to Master Station: 2‑cond., mid cap,
solid, non‑shielded – use Aiphone #871802
Master Station to Adaptor: CAT‑5e or CAT‑6
Adaptor to Sub Master Station: CAT‑5e or CAT‑6

• Distance: Door Station to Master Station: 330'

Master Station to Distribution Adaptor: 650'
Distribution Adaptor to Sub Master Station: 165'
Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG)
