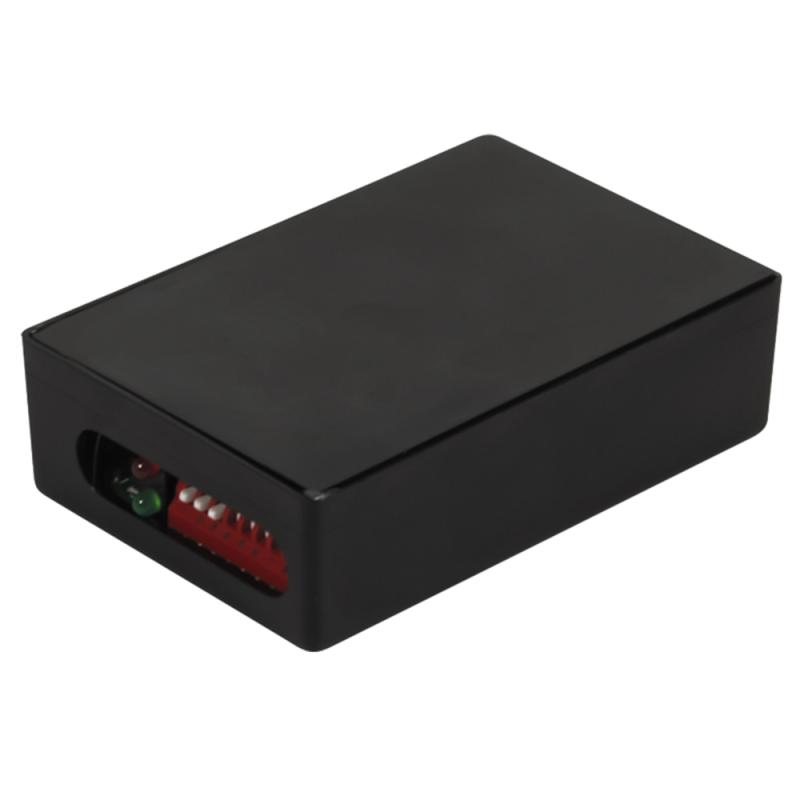

10MC25 BEA Sensors, Switches, Relays, Timer

Intelligent, programmable controllers -- and BEA boasts a wide family of logic module options, including the BR3-X and Br2-900.

BEA's BR3-X provides both simple and advanced logic controls. Common uses for the Br3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.

BEA's BR2-900 is a 2-relay logic module with built-in 900 MHz wireless technology. The BR2-900 is compatible with all existing BEA 900 MHz transmitters and products, plus the Universal Transmitter.

Notable Features Include:

• Logic module with integrated 900 MHz wireless technology eliminates the need for separate logic module and wireless receiver (Br2-900)
• Sequenced or simultaneous relay activation for application flexibility (Br2-900)
• 2-AMP relays allow the direct release of an electric locking device wirelessly, eliminating the need for a separate logic module or isolation relay (Br2-900)
• Extended Hold Mode allows wireless push plates to function like hardwired push plates (if push plate is held, relay does not time out) (Br2-900)
• Wireless functionality eliminates the need to run input wires directly to the logic module, saving both time and money (Br2-900)
• Dry auxiliary input for overriding Day / Night Mode (Br2-900)

• Versatility with 13 programmable logic functions for the BR3-X
• Two-button programming combined with dual seven-segment display provides simple setup (BR3-X)
• Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices (BR3-X)
• WET output with AC / DC voltage for powering an electric locking device directly from the module (BR3-X)
