DormaKaba - Cabinet Locks
9622C21-26D-41 DormaKaba Integrated and Pushbutton
$90.90

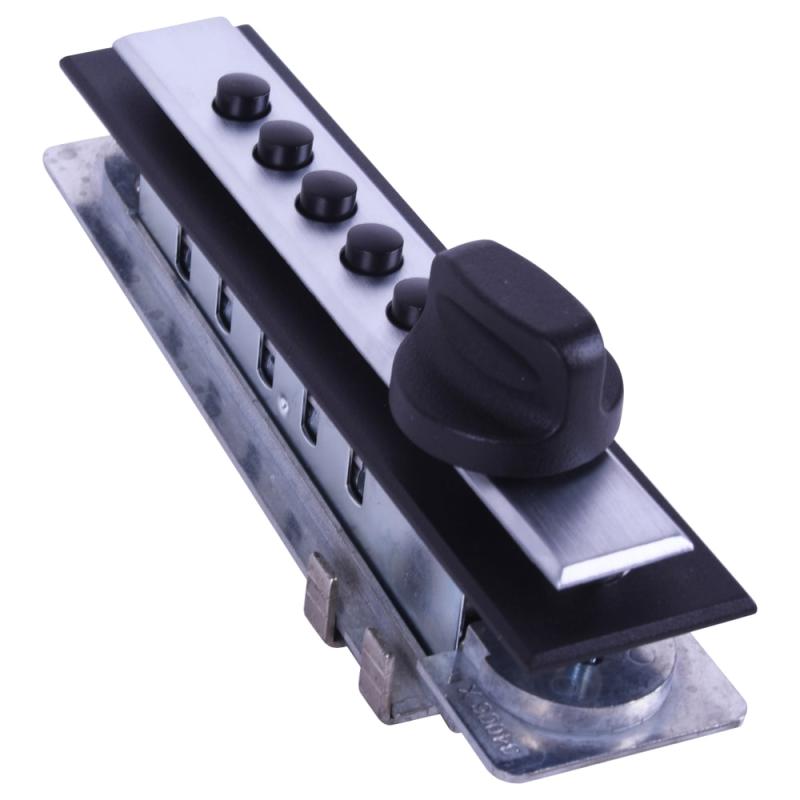

Cabinet Lock, Wood Application, End Throw, Clutch Ball Bearing Knob, With Trim Plate, Spring Latch, Satin Chrome
In Stock Quantity: 58
Product Info
Technical Specs
Resources
Product Details
The 9600 Series is specifically designed for cabinet doors, desk drawers, and similar applications.
- Construction: All metal cast face plate; force-resistant, protected exterior knob
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Non-handed
- Bolt:
- End-throw/cross-throw deadbolt (must be manually relocked)
- End-throw/cross-throw spring latch (with automatic relock)
- Door Thickness:
- Wood doors: ⅝" (16 mm) to ⅞" (22 mm)
- Sheet metal applications: 14 to 20 gauge 1⁄3", 1⁄16", 1⁄4"
- Installation:
- Horizontal or vertical.
- Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications).
- Punched slot or series of 7⁄16" (11 mm) drilled holes (for metal applications).
- Warranty: 1-year warranty
Product Specs
BASIC SPECS
ManufacturerDormaKaba
Sku9622C21-26D-41
Unit of MeasureEach
FINISH
Finish626/US26D
