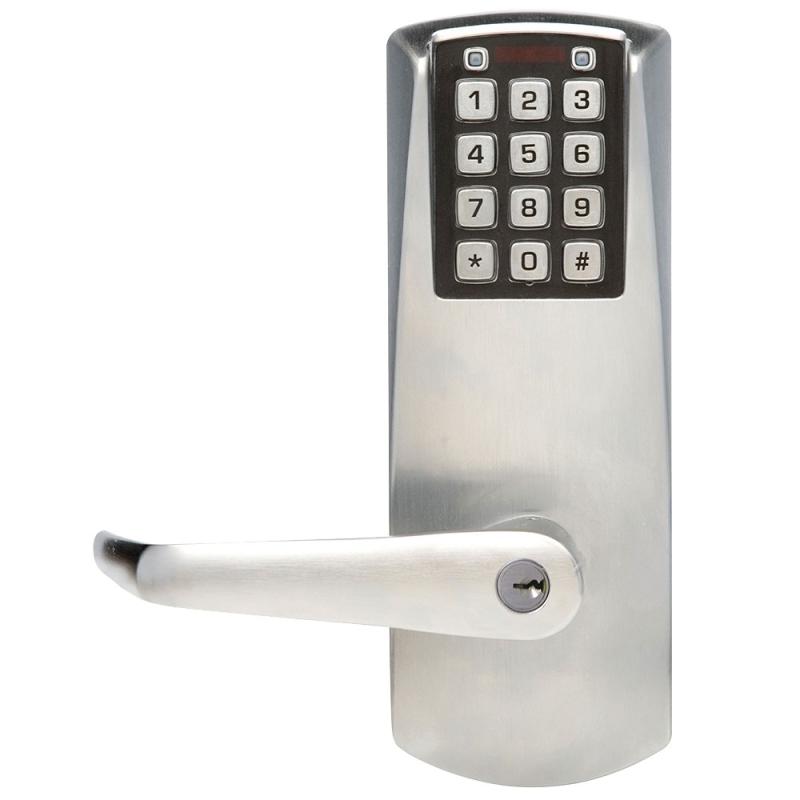

DormaKaba - Exit Device Trim, Concealed Vertical Rod
E202YXSLL-626-41 DormaKaba Integrated and Pushbutton
$563.76
E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Yale 7160 CVR Devices, KIL, Schlage C Keyway, Satin Chrome
In Stock Quantity: 22
Product Info
Technical Specs
Resources
Product Details
Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes
- Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
- Backset:
- Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
- Mortise: 2¾" (70 mm) backset
- Exit Trim Model: Varies by Exit Device
- Latches:
- Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
- Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
- Minimum Stile Required: 5" (127 mm)
- Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
- Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuE202YXSLL-626-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish626/US26D
Finish FamilyMatte Silver
