DormaKaba - Exit Device Trim, Mortise

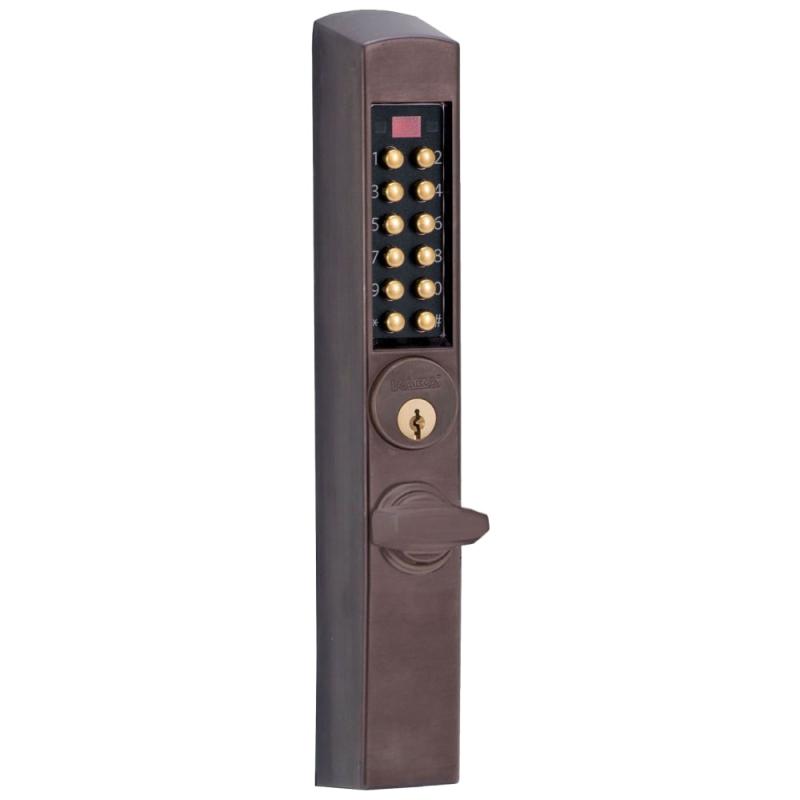

E3066MSNT-744-41 DormaKaba Integrated and Pushbutton
$844.69
E-Plex 3000 for Adams Rite Deadbolts, 300 Access Codes, 9,000 Audit Events, Schlage C Keyway, Thumbturn, Dark Bronze with Brass Accents
In Stock Quantity: 2
Product Info
Technical Specs
Resources
Product Details
The E-Plex 3000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
- Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications
- Handing: Non-handed, easily changed in the field
- Backset: 31⁄32" (25 mm) minimum
- Minimum Stile Recommended: 2" (51 mm)
- Key Override
- Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway
- Interchangeable Cores: Optional Mortise Shell accommodates small format—Best and equivalent (6-pin length)
- Door Preparation: Easily installs on narrow stile doors with four mounting screws
- Door Thickness: 1¾" (44 mm)
- Accessibility Standard: American with Disabilities Act (ADA)
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuE3066MSNT-744-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish744
Finish FamilyDark Bronze
