DormaKaba - Exit Device Trim, Mortise
E3266MSNL-744-41 DormaKaba Integrated and Pushbutton
$1,029.64

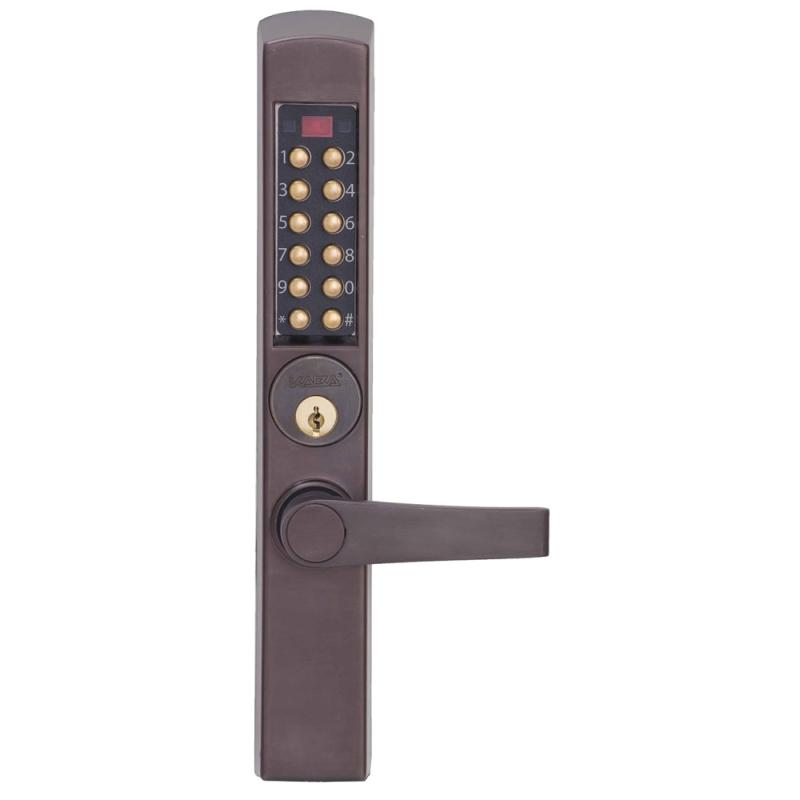

E-Plex 3000 for Adams Rite Deadbolts, 3,000 Access Codes, 30,000 Audit Events, Schlage C Keyway, Lever, Dark Bronze with Brass Accents
Available to Order
Ships in 3 - 4 weeks
Product Info
Technical Specs
Resources
Product Details
The E-Plex 3200 Series has up to 3,000 Access Codes and 30,000 Audit Events.
- Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications
- Handing: Non-handed, easily changed in the field
- Backset: 31⁄32" (25 mm) minimum
- Minimum Stile Recommended: 2" (51 mm)
- Key Override:
- Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway
- Interchangeable Cores: Optional Mortise Shell accommodates small format—Best and equivalent (6-pin length)
- Door Preparation: Easily installs on narrow stile doors with four mounting screws
- Door Thickness: 1¾" (44 mm)
- Accessibility Standard: American with Disabilities Act (ADA)
- Durability: Designed and fully tested to meet rigid life cycle test and operating reliability per BHMA Grade 1 requirements
- Environmental: Indoor/Outdoor Approved Front Housing : -31 °F (-35 °C) to 151 °F (66 °C)
- Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuE3266MSNL-744-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish744
Finish FamilyDark Bronze
