DormaKaba - Exit Device Trim, Rim
E5010BWL-744-41 DormaKaba Integrated and Pushbutton
$947.02

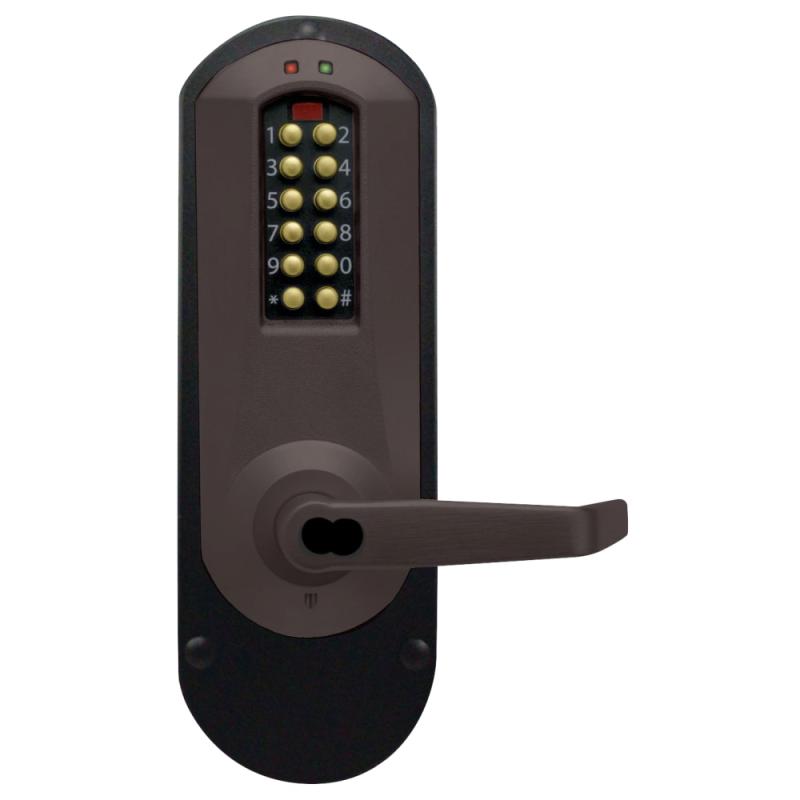

E-Plex 5000 Exit Trim, Winston Lever, 100 Access Codes, 3,000 Audit Events, 6/7-Pin SFIC Prep, Less Core, Dark Bronze with Brass Accents
In Stock Quantity: 5
Product Info
Technical Specs
Resources
Product Details
The E-Plex 5000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
- Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Door Handing:
- Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Exit Trim—Non-handed
- Backsets:
- Cylindrical—2 1⁄8" (70 mm), 2 3⁄8" (60 mm)
- Mortise—2 3⁄4" (70 mm)
- Exit Trim—Varies by exit device type
- Latch:
- Cylindrical—1⁄2" (13 mm) latch, 3⁄4" (19 mm) latch (optional)
- Mortise—3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuE5010BWL-744-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish744
Finish FamilyDark Bronze
