DormaKaba - Exit Device Trim, Rim
E5210MWL-626-41 DormaKaba Integrated and Pushbutton
$1,144.04
E-Plex 5200 Exit Trim, 3,000 Access Codes, 30,000 Audit Events, Medeco/Yale/ASSA/Abloy LFIC Prep, Less Core, Satin Chrome
Available to Order
Ships in 3 - 4 weeks
Product Info
Technical Specs
Resources
Product Details

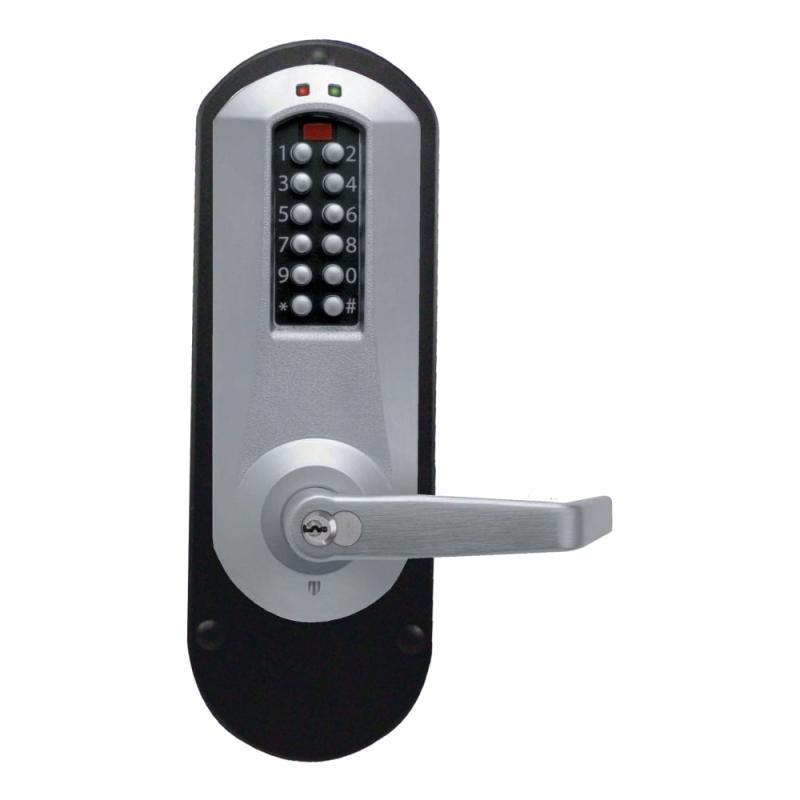

E-Plex 5200 Series provides exterior access by combination, while allowing free egress.
- Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
- Backset:
- Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
- Mortise: 2¾" (70 mm) backset
- Exit Trim Model: Varies by Exit Device
- Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
- Latches:
- Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
- Exit Device: Not supplied (see list above for compatibility)
- Exit Device Latch: Supplied with Exit Device
- Exit Device Hub Rotation: Up to 60º
- Minimum Stile Required: 5" (127 mm)
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuE5210MWL-626-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish626/US26D
Finish FamilyMatte Silver
