DormaKaba - Cylindrical Locks with Trim

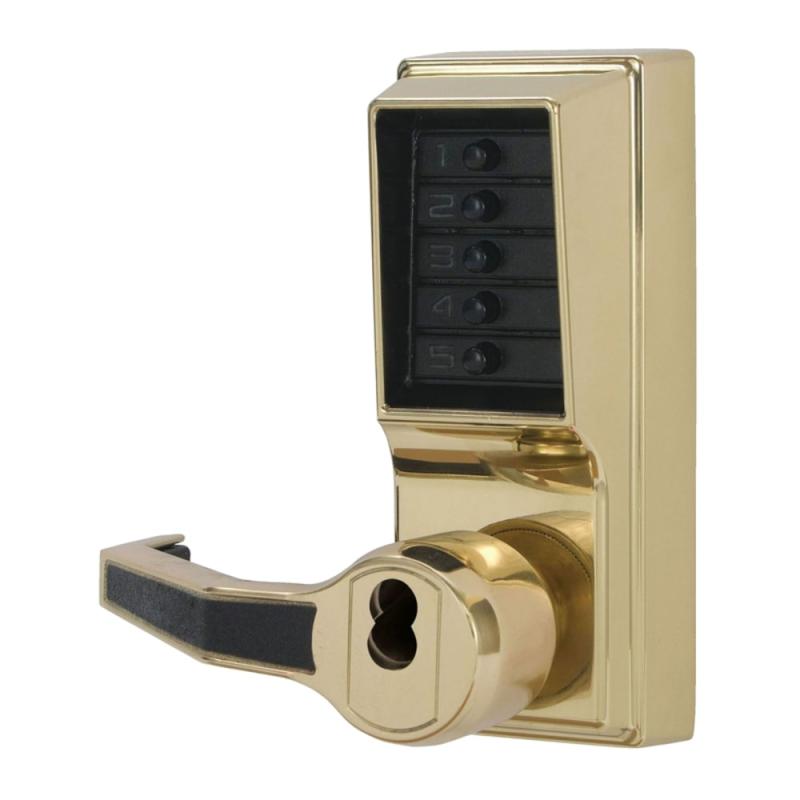

LL1025B-03-41 DormaKaba Integrated and Pushbutton
$566.94
Pushbutton Cylindrical Lever Lock, Combination Entry Function with Key Override, 2-3/4" Backset, 3/4" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Bright Brass Finish, Left Hand/Left Hand Reverse
In Stock Quantity: 4
Product Info
Technical Specs
Resources
Product Details
Eliminates the material and labor expense of battery replacements and has a single access-code.
- Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
- Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed; not field reversible
- Backset: 2¾" (70 mm), 2⅜" (60 mm)
- Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Minimum Stile Recommended: 5" (127 mm)
- Strike: Standard strike plate; ASA strike plate
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuLL1025B-03-41
InstallationCommercial
Unit of MeasureEach
Limited Warranty3 Years
Fire Rated3 Hours {A}
FINISH
Finish605/US3
Finish FamilyPolished Brass
