DormaKaba - Exit Device Trim, Rim
LLP1020R-026-41 DormaKaba Integrated and Pushbutton
$631.76

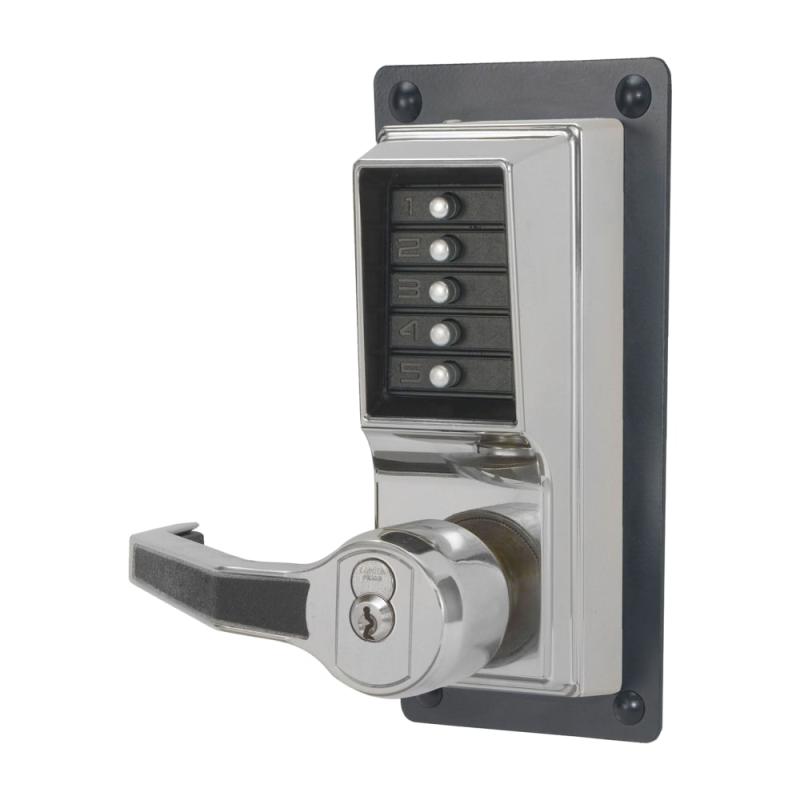

Exit Trim Lever Lock, Combination and Key Override, Left Hand Reverse, Sargent LFIC Prep, Less Core, Bright Chrome
Available to Order
Ships in 3 - 4 weeks
Product Info
Technical Specs
Resources
Product Details
Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
- Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed; not field reversible
- Exit Device Strike: Supplied with Exit Device
- Tailpiece:
- 2¾" (70 mm) tailpiece for Exit Device operation from outside
- Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
- Minimum Stile Recommended: 5" (127 mm)
- Weight: 8 lbs. (3.6 kg)
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
- Door Preparation: Recessed through bolts may be required for Exit Device preparation
- Door Thickness:
- 1⅜" (35 mm) to 2¼" (57 mm)
- Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
- Durability: Weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuLLP1020R-026-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish625/US26
Finish FamilyPolished Silver
