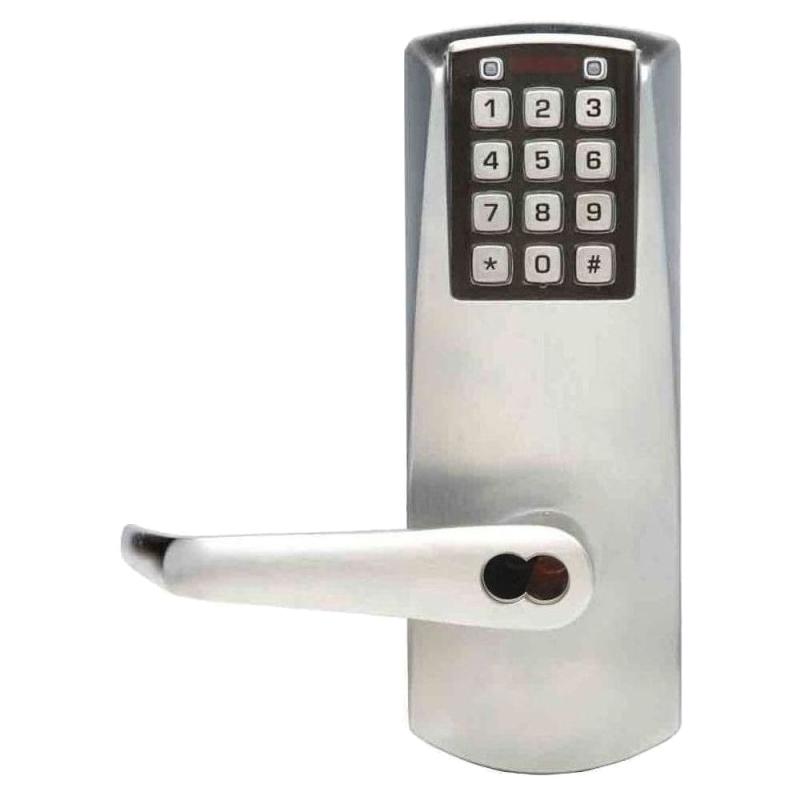

DormaKaba - Exit Device Trim, Concealed Vertical Rod & Rim
P201YBLL-626-41 DormaKaba Integrated and Pushbutton
$626.05
PowerPlex Exit Trim, Yale 7100, Corbin ED5200 Rim Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome
In Stock Quantity: 15
Product Info
Technical Specs
Resources
Product Details
PowerPlex Locks require no wiring to or through the door, eliminating the risk of damage from pinched wires that can result in costly callbacks.
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing:
- Non-handed, pre-assembled for left-hand door installation — easily changed in the field
- Backset:
- Cylindrical: 2 ¾" (70 mm) backset, 2 ⅜" (60 mm) backset
- Mortise: 2 ¾" (70 mm) backset
- Exit Trim Model: Varies by exit device
- Latches:
- Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Mortise Models: ¾" (19 mm) latch, 1" (25 mm) dead bolt (optional)
- Strikes:
- Cylindrical Models: Packaged standard with both ANSI A115.3 “T” Strike and A115.2 ASA Strike
- Minimum Stile Required: 5" (127 mm)
- Key Override Options
- Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder — Schlage “C” Keyway
- Interchangeable Core: Small format — Best and equivalent (6 or 7-pin length); cylinder not included
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuP201YBLL-626-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish626/US26D
Finish FamilyMatte Silver
