DormaKaba - Mortise Locks with Trim

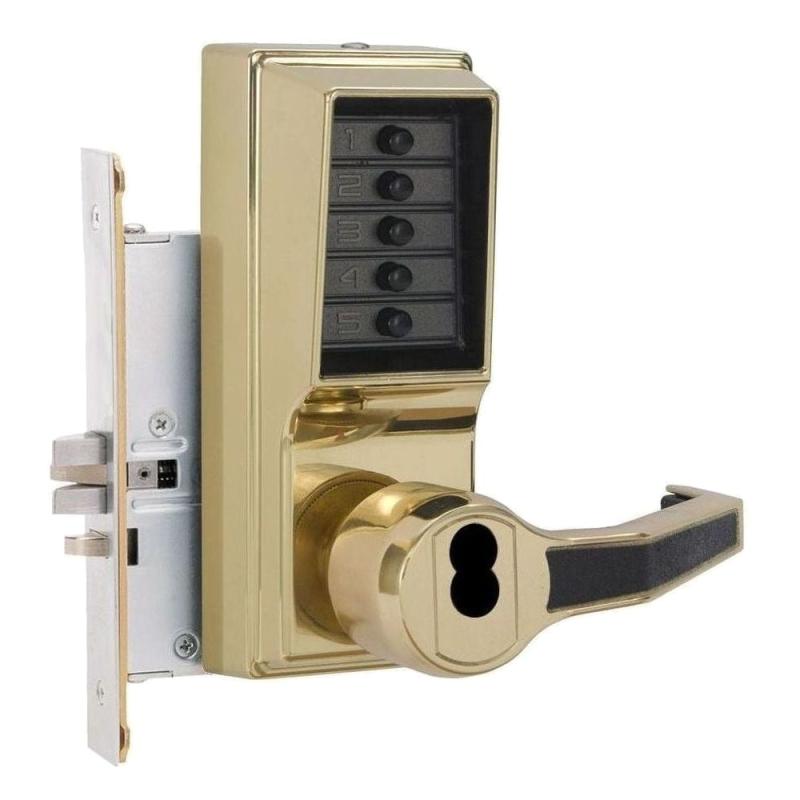

R8146C-03-41 DormaKaba Integrated and Pushbutton
$667.36
Mortise Combination Lever Lock, Key Override, Passage, Lockout, Corbin Russwin 6-Pin LFIC Prep, Less Core, Bright Brass
Available to Order
Ships in 3 - 4 weeks
Product Info
Technical Specs
Resources
Product Details
Provides exterior access by combination, while allowing free egress.
- Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Backset: 2¾" (70 mm)
- Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
- Minimum Stile Recommended: 5" (127 mm)
- Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
- Key Override
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
- Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
- Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: Weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
Product Specs
BASIC SPECS
ManufacturerDormaKaba
SkuR8146C-03-41
InstallationCommercial
Unit of MeasureEach
FINISH
Finish605/US3
Finish FamilyPolished Brass
