HES - Electric Strike Faceplates
502 613E HES Electric Strikes, Bolts, Magnet
$48.35

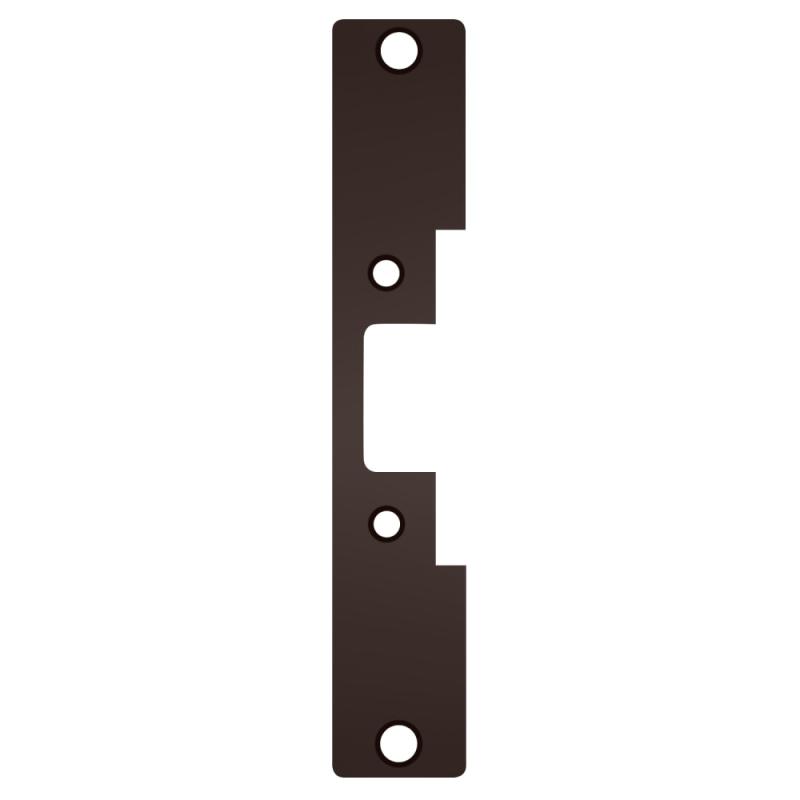

Faceplate Only, 5000/5200 Series, 7-15/16" x 1-7/16", Flat with Radius Corners, Oil Rubbed Bronze
In Stock Quantity: 16
Product Info
Technical Specs
Resources
Product Details
The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb.
Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Frame application
- Metal
- Wood
Electrical
- .24 Amps at 12 VDC/VAC
- .12 Amps at 24 VDC/VAC
- DC continuous duty/AC intermittent duty only
Standard Features
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector
- Trim enhancer included
- Five year limited warranty
Optional Features
- LBM - Latchbolt monitor
Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
- BLK - Black
- *Complete Pacs are only available in the 630 finish
Product Specs
BASIC SPECS
ManufacturerHES
Sku502 613E
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty5 Years
Fire RatedNo
FINISH
Finish613/US10B
Finish FamilyDark Bronze
