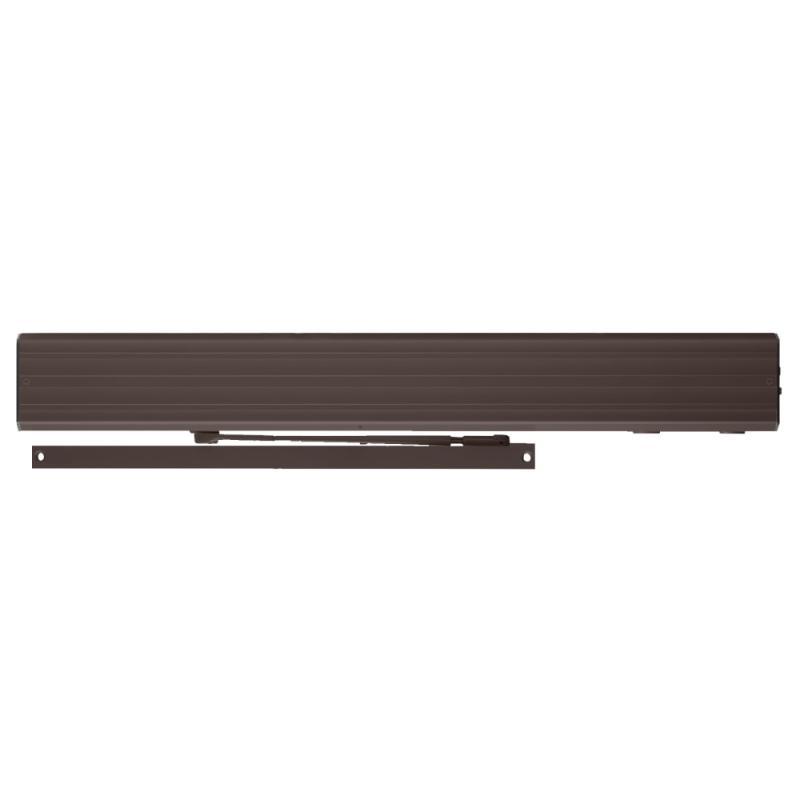

4631-STD 695 LCN Door Closers and Operator
$4,784.32
Grade 1 Low Energy Surface Mounted Electromechanical Benchmark Door Operator, Slide Track Arm Standard, Pull Side Mounted, 36" - 48" Door, 90 Deg. Powered, 170 Deg. Manual Swing, Machine and Wood Screws, Dark Bronze Painted Finish, Non-Handed
In Stock Quantity: 4
Accessories
LCN8310-865$213.89Receiver, Wireless, 1 Channel, w/Sequencing FeatureIn Stock Quantity: 236
LCN8310-861$203.45Transmitter, Handheld, 1 ChannelIn Stock Quantity: 136
LCN8310-844J$203.45Transmitter Kit, Jamb Mount, 3vIn Stock Quantity: 148
LCN8310-844$203.45Transmitter Kit, Wall Mount, 9vIn Stock Quantity: 351
Product Info
Technical Specs
Resources
Product Details
The 4630 Series is a smart and reliable electrically low-energy power operator.
The 4630 Series has a digital control box and is designed for manual opening applications that occasionally require automatic opening. This series provides easy access for people with disabilities, the elderly, or the frail.
- Standard, top jamb (pull side) mounted 4630 series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack. Actuators available separately, see pages 199-215 of the Catalog
- Meets ADA requirements (power mode).
- Non-sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
- Non-handed for either right or left swinging door.
- 4630 has easily accessible switches to provide on/off and continuous hold open functions. 4630CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
- Standard or optional custom powder coated finish, end caps are black.
- Optional plated finish on cover, arm, and fasteners.
Product Specs
BASIC SPECS
ManufacturerLCN
Sku4631-STD 695
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty2 Years
Fire Rated3 Hours {A}
FINISH
Finish695
Finish FamilyDark Bronze
