LCN - Concealed-in-Door Closers
5016-REG RH 693 LCN Door Closers and Operator
$598.61

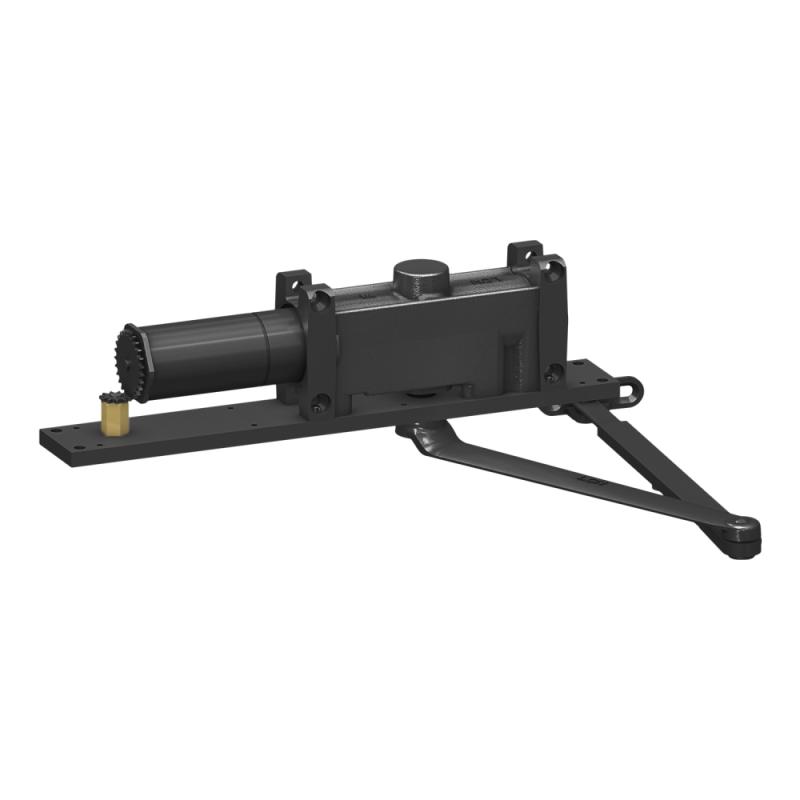

5010 Series Grade 1 Concealed Door Closer, Regular Arm, 180 Degree Swing, Size 6, Right-Handed, Black Painted Finish
Assembled from stock components. Call for availability.
Product Info
Technical Specs
Resources
Product Details
The 5010 Series is a concealed heavy duty closer designed for institutional, high traffic, or other applications exposed to weather or abuse.
The 5010 Series features the double lever arm that provides superior door control and a choice of finishes, cylinder functions, and arm functions that meet virtually all architectural requirements.
- Standard 5010 series closer shipped with regular arm, metal finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
- Handed for right or left swinging doors
- For hollow metal or wood, door and frame
- Aluminum frame requires minimum 4” (102 mm) x 4” tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on finish plate, arm, and fasteners
- Optional SRI primer for installations in corrosive conditions
Product Specs
BASIC SPECS
ManufacturerLCN
Sku5016-REG RH 693
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty15 Years
FINISH
Finish693
Finish FamilyBlack
