Norton - Door Operators

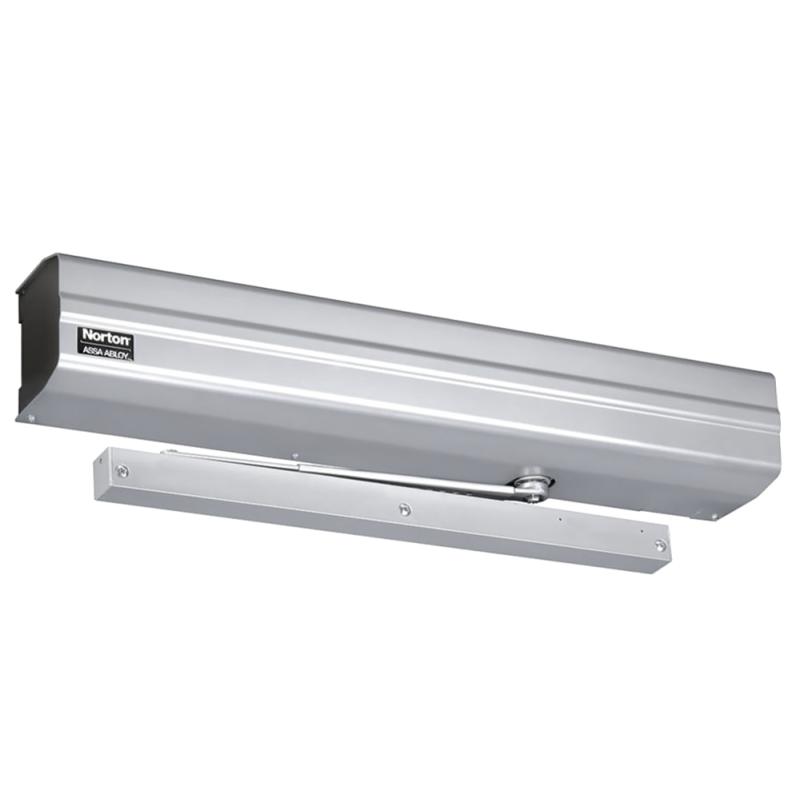

5740 689 Norton Door Closers and Operator

$2,859.26

Low Energy Surface Mounted Electrohydraulic Door Operator Universal Kit (Operator, Cover, Push and Pull Arms), Aluminum Painted Finish

In Stock Quantity: 11

Similar Products

Norton5730 689$2,826.25Low Energy Surface Mounted Electrohydraulic Door Operator, Regular, Push Side Mounted, Top Jamb, 29" - 36" Door, 170 Deg. Swing, Aluminum Painted FinishIn Stock Quantity: 21
View
Norton5710 689$2,826.25Low Energy Surface Mounted Electrohydraulic Door Operator, Slide Track Arm Standard, Pull Side Mounted, 29" - 36" Door, 110 Deg. Swing, Aluminum Painted FinishIn Stock Quantity: 16
View
Arrow7836H AL$4,207.98Low Energy Surface Mounted Electrohydraulic Door Operator, Slide Track Arm Standard with Adjustable, Pull Side Mounted, 29"-36" Single Doors, 30"-36" Double Doors, 180 Deg. Swing, Aluminum Painted FinishAvailable to Order
Ships in 3 - 4 weeks
View
Arrow7836S AL$4,207.98Low Energy Surface Mounted Electrohydraulic Door Operator, Regular, Push Side Mounted, 29"-36" Single Doors, 30"-36" Double Doors, 170 Deg. Swing, Aluminum Painted FinishAvailable to Order
Ships in 3 - 4 weeks
View
Product Info
Technical Specs
Resources

Product Details

The 5700 Series design is based on ease and simplicity.

This unit installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton's 1601 closer body. Quiet and dependable, the 5700 meets the requirements of the Americans with Disability Act (A.D.A.) and ANSI/BHMA A156.4. Available push- or pull- side mounting, this unit is perfect for applications that don't require special features but demands reliability.

  • Door Controls (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing.
  • Door closing force shall be adjustable to ensure adequate closing control.
  • Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
  • Door Operator shall provide conventional door closer opening forces unless the power operator motor is activated.
  • Door Operator shall provide conventional door closing forces at all times except in the event of power outage during powered door open cycle.
  • Door Operator opening force and speed shall be adjustable by independent electronic adjustment to ensure adequate opening control per accessibility codes.
  • Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently.
  • Door Operator shall have a manual adjustment to locate both full open and full closed door positions.
  • Maximum door open shall be adjustable and capable to a maximum 180° conditions permitting. [(Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e., wall switch, etc.)]
  • Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds.
  • Door operator shall have input line rating of 120VAC, .6A or 240VAC, .3A.
  • Units shall have relay contact for interfacing products having a contact rating of 30VDC at 1A or 125VAC at .5A.
  • Unit shall have an external On/Off Switch to defeat powered opening when desired.
  • Unit shall have an internal circuit breaker switch to interrupt input power for servicing.
  • Unit shall be U.L. Listed for automatic closing door.
  • Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA), ANSI standards A117.1 and A156.19.
  • Unit shall meet C-UL US.

Product Specs

BASIC SPECS
ManufacturerNorton
Sku5740 689
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty2 Years
FINISH
Finish689/US28
Finish FamilyMatte Silver
