Sargent - Surface Vertical Rod Exit Devices

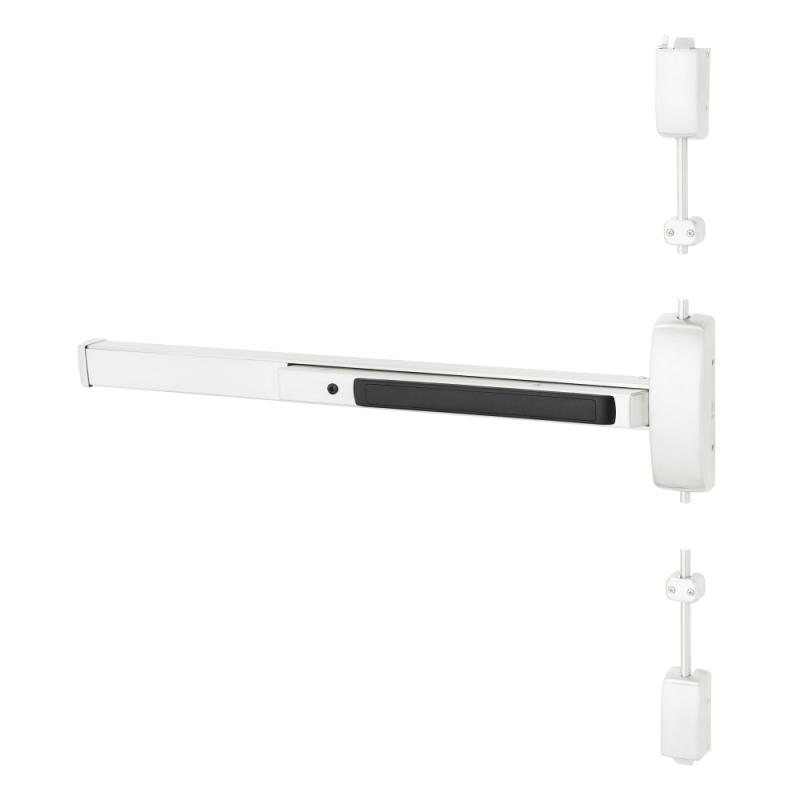

8740J ETE RHR WSP Sargent Exit Device
$2,544.79
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 42" Device, 84" Door Height, Dummy Function, E Freewheeling/Vandal Resistant Lever, Hex Key Dogging, White Suede Powder Coat Finish, Right Hand Reverse
Assembled from stock components. Call for availability.
Product Info
Technical Specs
Resources
Product Details
Has two point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
BASIC SPECS
ManufacturerSargent
Sku8740J ETE RHR WSP
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty5 Years
Fire RatedNo
FINISH
FinishWSP
Finish FamilyWhite
