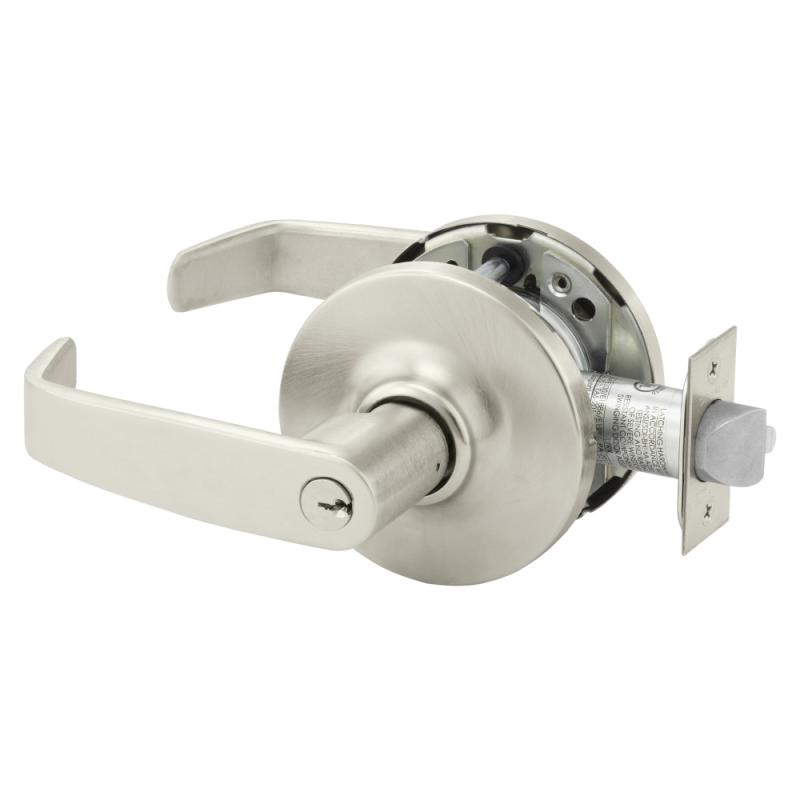

product image

Sargent - Cylindrical Lock

10XG05 GL 15 Sargent Locks, Cylinders, Cores, Keyblank

$561.20

Grade 1 Entrance/Office Cylindrical Lock, L Lever, G Rose, Conventional Cylinder, Satin Nickel Finish, Non-handed

Assembled from stock components. Call for availability.

Spec Options

Product Info
Technical Specs
Resources

Product Details

Grade 1 locksets that exceed standards for durability, strength and performance by as much as 20 times.

The Sargent 10X-Line series is engineered to secure and protect high-abuse, high-traffic spaces. Occupants enjoy consistent performance for the life of the product.

  • Lock chassis design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders.
  • Latch retraction with 100lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors
  • No access with minimum 100 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements)
  • Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
  • Innovative push/turn button design to withstand excessive abuse against door stops or walls.

Product Specs

BASIC SPECS
ManufacturerSargent
Sku10XG05 GL 15
GradeGrade 1
InstallationCommercial
OriginUnited States
Unit of MeasureEach
Limited Warranty10 Year Limited Warranty
Fire Rated3 Hours {A}
FINISH
Finish619/US15
Finish FamilyMatte Silver
