Schlage Electronics - Request-to-Exit Devices
692 36 628RD R Schlage Electronics Exit Device
$635.77

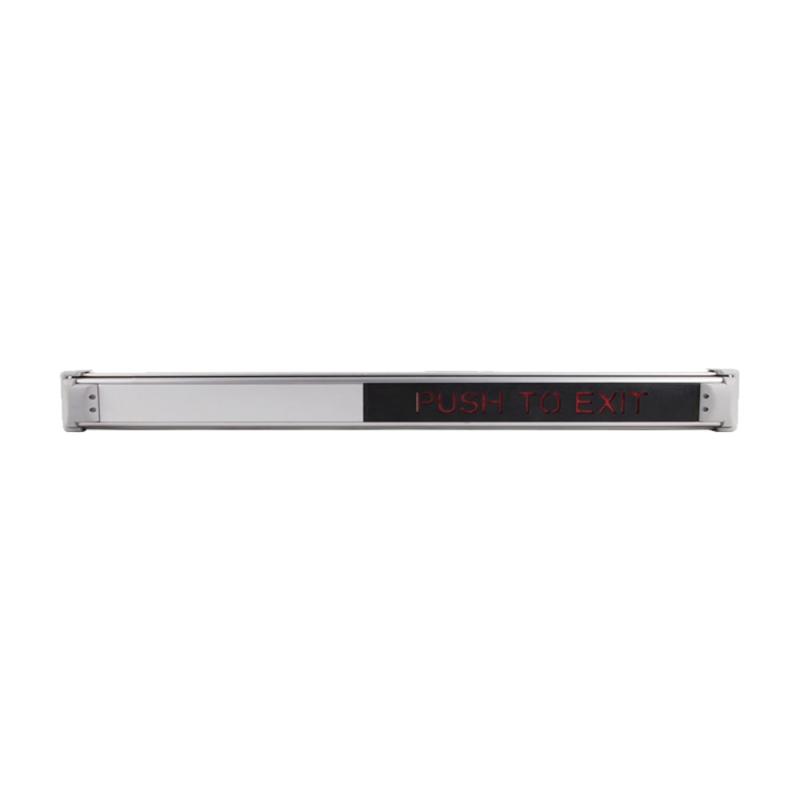

SmartBar Request-to-Exit Device, Narrow Stile Pushpad, Low Profile, 36", Red Lettering, RHR, Satin Aluminum Clear Anodized
In Stock Quantity: 4
Product Info
Technical Specs
Resources
Product Details
An electronic switching device with no moving parts, which serves as a non-latching request-to-exit device.
The 692 series SmartBar allows one motion egress at doors equipped with an electronic locking device, most commonly an electromagnetic lock, with "no prior knowledge" required by the user. Touching the SmartBar at any point on the bar activates internal circuitry which controls power to the locking device. No moving parts results in low maintenance and long life.
- Patent-pending infrared detection along bar releases locking device when light beam is broken
- One motion egress when installed with electromagnetic or electrified locks
- Large "PUSH TO EXIT" lettering provides obvious exit indication with glow-in-the- dark option
- Low profile provides ample clearance through the door
- Audible alarm is standard
- Left- or right-hand reverse (field reversible)
- For aluminum, hollow metal and wood doors
- No moving parts for low maintenance and long life
- Heavy-duty aluminum extrusion with cast metal end caps for maximum durability
- Quick installation brackets/universal mounting system
Product Specs
BASIC SPECS
ManufacturerSchlage Electronics
Sku692 36 628RD R
InstallationCommercial
Unit of MeasureEach
FINISH
Finish628/US28
Finish FamilyMatte Silver
