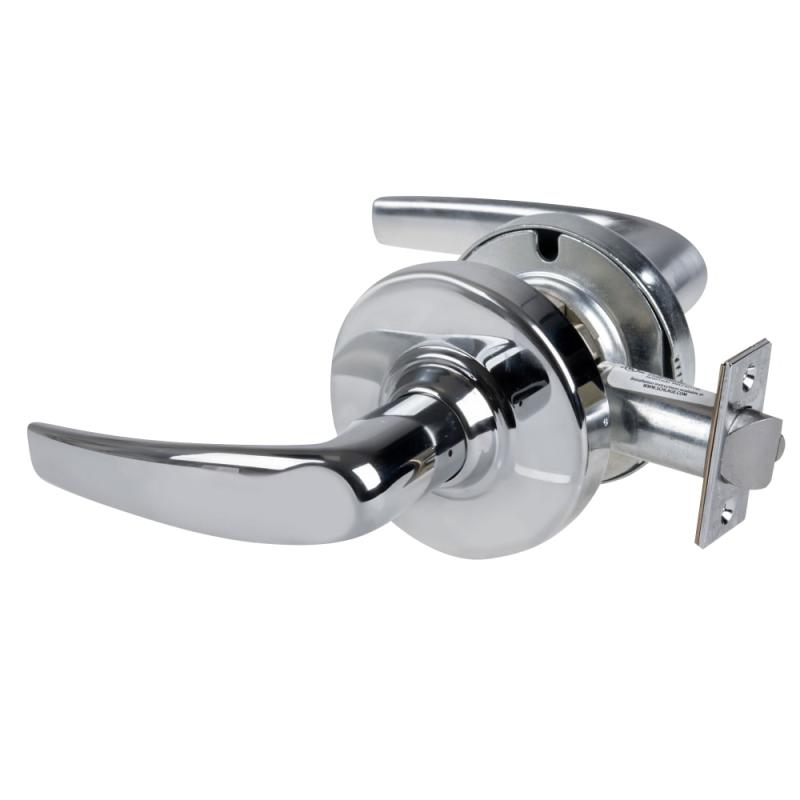

ND12DEU ATH 625 Schlage Electric Lock

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

Applications

The electrified ND is ideally used in:

• High traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building

Key Features

All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
• Six electrified functions for application flexibility
