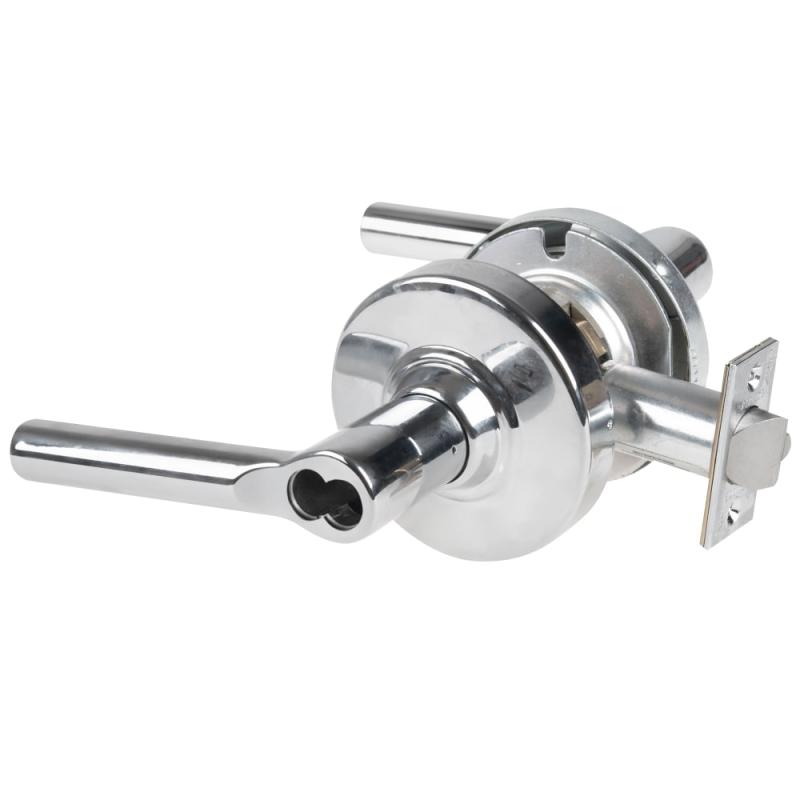

Schlage - Electric Cylindrical Lock

ND96JDEL BRW 625 Schlage Electric Lock

$737.54

Grade 1 Electrified Cylindrical Lock, Storeroom Function with Vandlgard, 12-24V DC, Fail Safe, 2-3/4" Backset, Broadway Lever, Less Full Size Interchangeable Core, Bright Chrome Plated

Assembled from stock components. Call for availability.

Spec Options

Product Info
Technical Specs
Resources

Product Details

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

Applications

The electrified ND is ideally used in:

  • High traffic areas, where line power ensures continuous operation
  • New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building

Key Features

All mechanical features plus:

  • Auto-detecting 12-24VDC input
  • Selectable EL/EU operation
  • Low 0.23 amp max current draw that allows multiple locks on a single power supply
  • Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
  • Modular Request to Exit (RX) that can be added at any time
  • Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
  • Six electrified functions for application flexibility

Product Specs

BASIC SPECS
ManufacturerSchlage
SkuND96JDEL BRW 625
GradeGrade 1
InstallationCommercial
OriginMexico
Limited Warranty1 Year
FINISH
Finish625/US26
