Von Duprin - Dummy Exit Devices

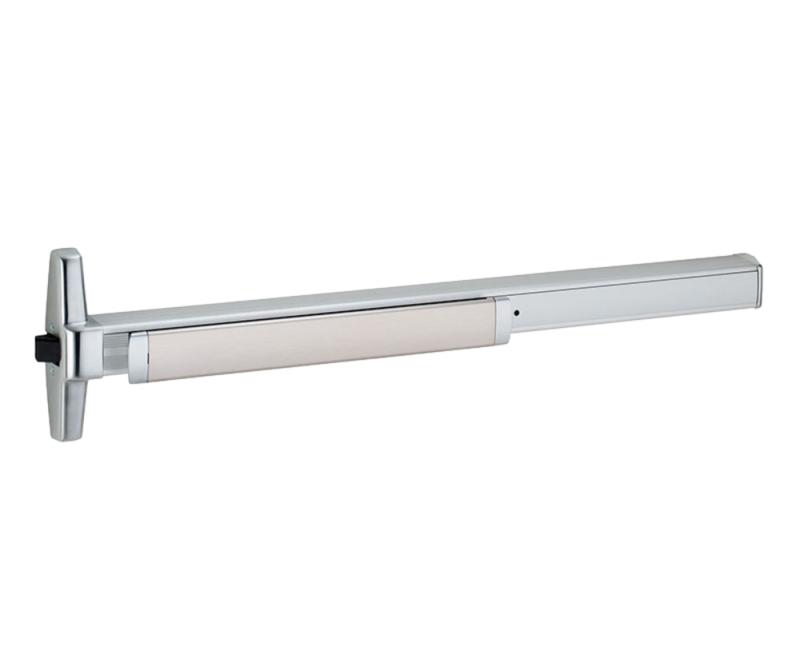

35AL-DT-03 4 US15 LHR Von Duprin Exit Device
$2,407.22
Grade 1 Dummy 48" Rim Exit Device, 03 Lever With Escutcheon, Hex Key Dogging, Satin Nickel Plated Clear Coated Finish, Left-Hand Reverse
Assembled from stock components. Call for availability.
Product Info
Technical Specs
Resources
Product Details
Devices are ANSI A156.3 – 2001 Grade 1.
The 35A has a smooth mechanism case and rim device is non-handed except when the SS (signal switch) option is used.
- Device lengths: 3' 2' 4" to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm)
- Door size: Device centerline from finished floor 39 13/16" (1011 mm) 39 11/16" (1008 mm) with Mullion
- Center case dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar Depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3 /4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes 13 /4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Product Specs
BASIC SPECS
ManufacturerVon Duprin
Sku35AL-DT-03 4 US15 LHR
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty3 Years
FINISH
Finish619/US15
Finish FamilyMatte Silver
