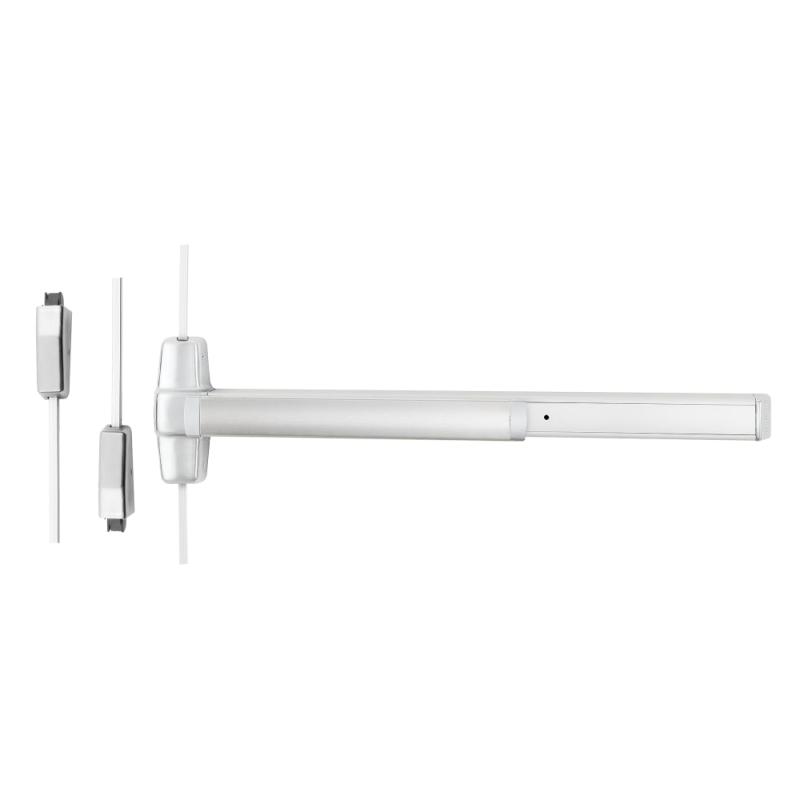

Von Duprin - Surface Vertical Rod Exit Devices

9827L-BE-05 3 US26 LHR Von Duprin Exit Device

$2,810.84

Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Passage Function, 05 Lever with Escutcheon, Hex Key Dogging, Bright Chrome Finish, Field Reversible

Assembled from stock components. Call for availability.

Product Info
Technical Specs
Resources

Product Details

Covers stock hollow metal doors with 86 or 161 cutouts.

9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
  • Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Product Specs

BASIC SPECS
ManufacturerVon Duprin
Sku9827L-BE-05 3 US26 LHR
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty3 Years
Fire RatedNo
FINISH
Finish625/US26
Finish FamilyPolished Silver
