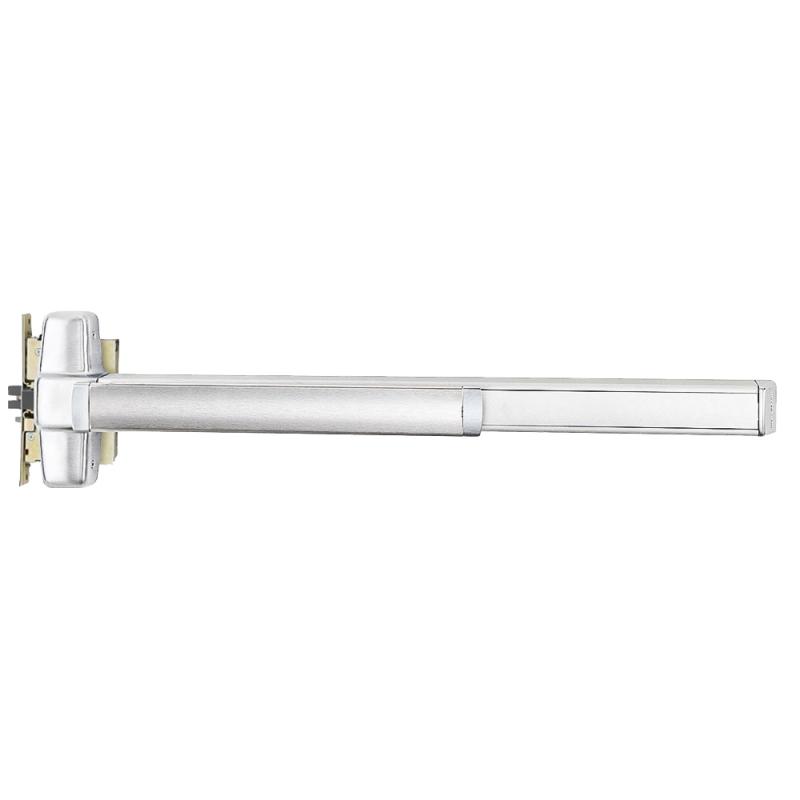

9875L-NL-16-F 3 26D RHR Von Duprin Exit Device

The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).

• Device Functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device Lengths:
  • 3' – 2' 4" to 3' (711 mm to 914 mm) door size
  • 4' – 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from finished door:
  • 39-13/16" (1011 mm)
  • 39-11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
• Projection: Pushbar neutral – 3-13/16" (97 mm); Pushbar depressed – 3-1/16" (78 mm)
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal or wood doors.
