Von Duprin - Three-Point Locking Exit Devices

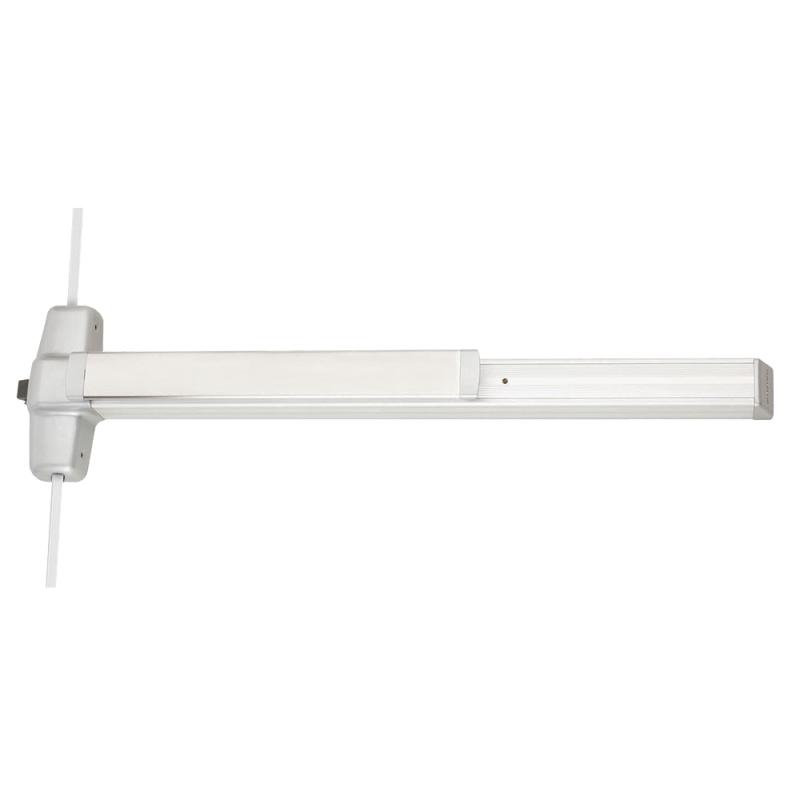

9957L-06 3 26D LHR Von Duprin Exit Device

$3,044.65

Grade 1 Three-Point Exit Bar, 36" Device, 84" Door Height, Classroom Function, 06 Lever with Escutcheon, Hex Dogging, Satin Chrome Finish, Field Reversible

In Stock Quantity: 12

Product Info
Technical Specs
Resources

Product Details

The 9957 Series covers stock hollow metal doors with 86 or 161 cutouts.

The 9957 Series by Von Duprin has a grooved case and is UL listed for panic exit hardware. The three-point latching device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 3913/16" (1011 mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw Deadlocking rim bolt, 3 /4" (19mm) throw
  • Door undercut: 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Product Specs

BASIC SPECS
ManufacturerVon Duprin
Sku9957L-06 3 26D LHR
GradeGrade 1
InstallationCommercial
OriginUSA
Unit of MeasureEach
Limited Warranty3 Years
Fire RatedNo
FINISH
Finish626/US26D
Finish FamilyMatte Silver
